Sauna in Bathroom: The Complete Small-Space Planning Guide

A sauna in a bathroom is more achievable than most people assume: a one-person infrared cabin fits a footprint as small as 90 x 90 cm (36 x 36 in), and a comfortable single-person unit starts at roughly 90 x 120 cm (3 x 4 ft). The three non-negotiables are a ceiling of at least 2.1 m (7 ft), a dedicated electrical circuit—120V/15–20A for most infrared models, 240V for traditional heaters—and a bathroom exhaust fan rated for 50–80 CFM ducted to the exterior. A small sauna in infrared form is the most practical choice for tight rooms: it heats up in 10–15 minutes, produces minimal steam, and avoids the heavy moisture load that makes traditional heaters harder to retrofit into an existing bathroom.

Can You Put a Sauna in a Small Bathroom?

Yes—a sauna in a bathroom is achievable in spaces most people would write off as too tight. North American bathrooms built after 1990 typically run 3.7–4.2 sq m (40–45 sq ft), and that is enough room for a compact infrared unit in a corner or along one wall while still leaving the toilet, vanity, and shower fully accessible. The key is choosing a unit sized to fit, not trying to squeeze in a full multi-person cabin. Thousands of urban condos and compact family homes have done exactly this, and the results look nothing like a compromise.

The bathroom is actually one of the better rooms in the house for a sauna. The flooring is already waterproofed, a drain is typically present or nearby, the room already has a ventilation fan (even if it needs an upgrade), and the plumbing infrastructure is close at hand. What it lacks—compared to a basement or dedicated wellness room—is floor area, and that gap is closed by choosing infrared over traditional and planning the layout before purchasing the unit.

Sauna in Bathroom: Infrared vs Traditional—Which Works Better?

For a sauna in a small bathroom, infrared is the practical choice in the large majority of retrofit situations, while traditional electric heaters are achievable but demand significantly more planning. The differences are not just about temperature; they cascade into electrical cost, moisture load, install complexity, and daily convenience.

Why infrared suits a small sauna in a bathroom

Infrared heaters warm the body directly by emitting radiant energy rather than heating the surrounding air to extreme temperatures. This produces an operating range of 49–60°C (120–140°F)—warm enough for a full, satisfying session, but a meaningfully lower thermal load on adjacent tile, grout, mirrors, and fixtures. Heat-up takes 10–15 minutes, which suits a bathroom that doubles as a daily-use space. A compact infrared cabin draws 1.4–2 kW on a standard 120V/15–20A dedicated circuit, so in most cases no new high-voltage wiring is needed. Steam output is negligible, which simplifies moisture management considerably and reduces wear on the bathroom's existing finishes.

When traditional electric makes sense in a bathroom

A traditional sauna heater—burning rocks to near 71–90°C (160–194°F)—produces the classic Finnish löyly experience when water hits the stones. In a bathroom context, that steam load goes directly into the room, which demands robust vapour barriers, upgraded exhaust capacity, and higher-rated surrounds. Traditional compact heaters sized for a 3 x 4 ft cabin typically draw 3–4.5 kW on a dedicated 240V circuit, which means an electrician visit regardless of your existing panel. Heat-up adds 30–45 minutes to the session. None of this is prohibitive in a properly planned renovation, but the combined cost and complexity of the electrical run, the vapour envelope, and the ventilation upgrade is substantially higher than a plug-and-play infrared install. Budget and existing infrastructure should drive that decision.

Stat: According to the U.S. Energy Information Administration (EIA) Electric Power Monthly, the average residential electricity rate in the United States sits near $0.16 per kWh. A 1.7 kW infrared cabin running 30 minutes four times per week draws roughly 14 kWh per month—approximately $2.25 in electricity costs, making daily use highly affordable.

Space Planning: Minimum Dimensions, Layouts, and Door Swing

Getting the layout right before ordering a unit is the single decision that determines whether a bathroom sauna install is functional or frustrating. The most common mistake is sizing the unit to the corner and ignoring the door swing—a sauna door opening inward into a tight space can render the toilet or vanity inaccessible. Measure twice, then plan the door arc before anything else.

Minimum dimensions

The smallest one-person prefabricated infrared cabin sits at 90 x 90 cm (36 x 36 in). This is usable but cramped for a full session; 90 x 120 cm (3 x 4 ft) is the practical minimum for comfort, allowing a bench long enough to sit with legs extended or slightly angled. Ceiling height inside the cabin must reach at least 2.1 m (7 ft)—below that, heat collects unevenly and headroom on the bench becomes uncomfortable. Keep a minimum of 60–75 cm (24–30 in) of clear floor space in front of the sauna door for the swing arc and safe egress.

The three layouts that work in a small bathroom

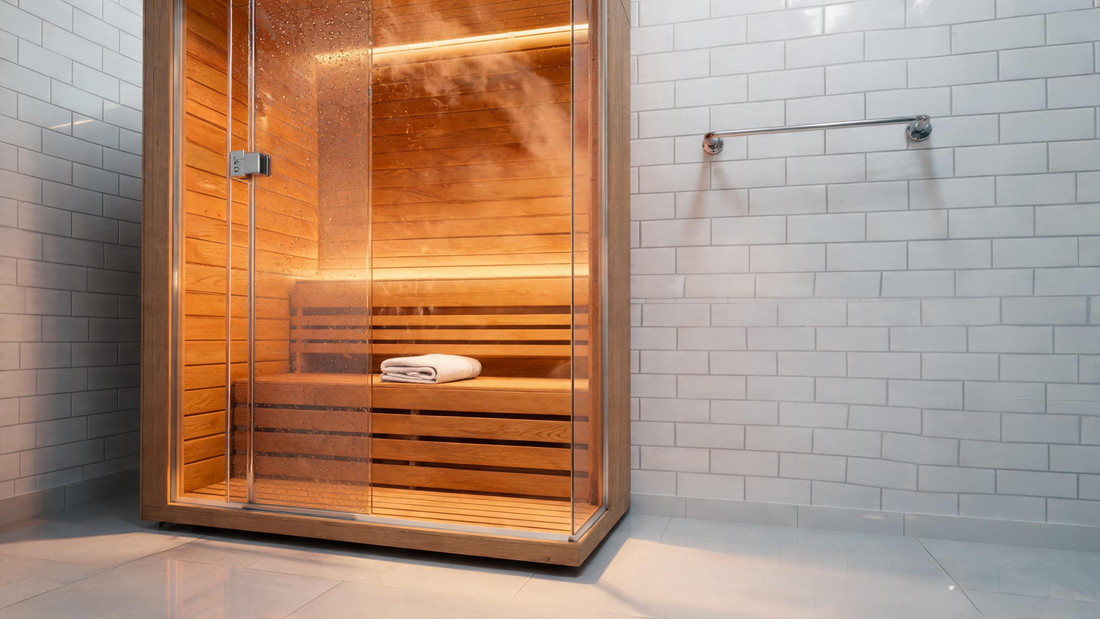

Corner placement is the most space-efficient option in a standard 1.5 x 2.4 m (5 x 8 ft) bathroom. A compact unit with a roughly 90 x 90 cm to 100 x 120 cm (40 x 48 in) footprint placed in the far corner opposite the entry door occupies space that typically goes unused while preserving the main circulation path to the toilet and vanity. The glass front panel keeps the room feeling open.

Wall-aligned placement works well when a closet, linen shelving unit, or oversized vanity can be removed and replaced with a rectangular infrared cabin (typically 90 cm deep x 150 cm wide / 36 x 60 in) along the long wall. This creates a near-seamless built-in appearance and allows benches long enough for a full recline.

Tub-replacement placement suits a renovation where the bathtub is being removed anyway. The standard North American 5-foot (1.5 m) alcove tub footprint is wide enough to accommodate a one-person infrared unit with room to spare. This approach requires the most structural work—waterproofing the alcove, running a new circuit, and upgrading the exhaust—but the result is the most integrated and spa-like outcome.

Small Sauna Options: Type, Footprint, Power, and Best For

The table below maps the most practical small sauna configurations to their real footprint, power requirements, and ideal use case—use it to filter options before measuring your bathroom. All footprint figures are exterior cabinet dimensions; allow an additional 5–10 cm (2–4 in) on each side for clearance from walls if the manufacturer recommends it.

The Calore indoor infrared sauna sits in the compact-to-standard infrared range, built with Grade-A Canadian hemlock and proprietary low-EMF far-infrared panel heaters—a practical fit for the bathroom footprints above. Browse the full Calore saunas collection to compare models by dimension.

Sauna in Bathroom: Electrical Requirements (120V vs 240V)

Every sauna in a bathroom requires a dedicated circuit—no exceptions—but whether that circuit is 120V or 240V depends entirely on the heater type and wattage. Sharing a circuit with other bathroom loads is a code violation and a fire risk. This is one area where the decision to go infrared versus traditional has a direct cost consequence: many homeowners can add a 120V/20A dedicated circuit for a compact infrared unit at modest electrician cost, while a new 240V run often involves panel upgrades and conduit through finished walls.

120V infrared: the simpler path

Compact one-person infrared cabins drawing up to 1.7–2 kW are commonly offered in 120V configurations, operating on a standard household current with a 15–20A dedicated circuit. The National Electrical Code (NFPA 70) governs all residential electrical work in the United States, including bathroom wet-zone requirements. The NEC Article 680 and related sections require that wiring in bathroom wet zones meet specific ratings, GFCI protection where mandated, and that no outlets or unprotected switches be installed inside the sauna cabin itself. A licensed electrician familiar with local amendments to the NEC must run and inspect the dedicated circuit.

240V traditional: the planning-intensive path

Traditional sauna heaters for a compact cabin typically draw 3–4.5 kW, requiring a dedicated 240V circuit at 30–50A. If the home's existing electrical panel has available capacity, the run itself is the primary cost; if the panel is at capacity, an upgrade may be required before the sauna circuit can be added. The heater must be sized to the cabin volume—a common rule of thumb is (length + width + height in feet) × 200 = minimum watts needed—and controls must be located outside the sauna in a position not subject to direct water spray.

Ventilation and Moisture Management for a Sauna in a Bathroom

Moisture management is where bathroom sauna installs succeed or fail—get it right and the room lasts for decades; get it wrong and you are looking at mould, peeling paint, warped trim, and structural damage within a few years. The strategy works on two levels: controlling humidity inside the sauna cabin itself through cross-ventilation, and protecting the surrounding bathroom from residual heat and moisture after each session.

The bathroom exhaust fan

The existing bathroom exhaust fan in most North American homes is rated for 50–110 CFM, but the original installation often ducts into the attic rather than to the exterior—a code violation in many jurisdictions and a direct path to attic moisture damage. Confirm the duct runs all the way to an exterior wall or roof cap before any sauna goes in. For a sauna bathroom, upgrade the fan to at least 50–80 CFM capacity per ASHRAE 62.2 (Ventilation and Acceptable Indoor Air Quality in Residential Buildings), the residential ventilation standard widely adopted into North American building codes. Connect the fan to a timer switch and set the timer to run 20–30 minutes after every session to clear the room before humidity has time to condense on cold surfaces. Ducting diameter matters: a 10 cm (4 in) duct is the minimum for that CFM range; any elbow or horizontal run longer than 3 m (10 ft) should step up to 15 cm (6 in) to avoid restriction.

Ventilation inside the sauna cabin

A sealed, airtight sauna cabin is not just uncomfortable—it is unsafe. The cabin needs a low-level fresh-air intake vent near the floor on the wall opposite the heater, and a high-level exhaust vent near the top of the same or adjacent wall. This arrangement drives convection: cool fresh air enters low, warms and rises, and exits high, keeping oxygen levels comfortable during a session. For an infrared unit, the ventilation needs are less critical than for a traditional steam heater, but the cross-flow still prevents stuffiness during longer sessions and speeds drying after use.

Vapour barrier and waterproofing

The vapour barrier is the most important single layer in a sauna surround. Use a foil-faced barrier on all interior walls and the ceiling of the sauna area, installed with the shiny reflective side facing into the sauna interior. Overlap all seams by at least 10 cm (4 in) and seal every seam, corner, and penetration with aluminium foil tape—not standard plastic tape, which degrades under heat. Behind any tile on the surrounding bathroom walls, use moisture-resistant gypsum board (sometimes called green board or cement board for wet areas). The floor under and around the sauna must be a non-porous, waterproof surface: porcelain tile, sealed concrete, or commercial-grade vinyl. After every session, prop the sauna door open slightly to allow the interior to air-dry before closing up.

Heat-Rated Materials: What to Use in the Bathroom Surround

The materials directly adjacent to a sauna in a bathroom need to handle sustained heat, humidity cycles, and the inevitable condensation that follows a session without warping, cracking, or off-gassing. The sauna cabin itself handles this internally through its wood species choice; the surrounding bathroom materials are the builder's responsibility.

Flooring under and around the sauna

Porcelain tile is the gold standard: non-porous, dimensionally stable at sauna-adjacent temperatures, easy to clean, and impervious to moisture. Unglazed porcelain or textured tile adds slip resistance when wet. Sealed concrete is equally valid. Standard laminate flooring and engineered hardwood are poor choices—moisture cycling causes swelling and delamination at the edges closest to the sauna. Heavy-duty luxury vinyl plank (LVP) with a waterproof core is acceptable if it carries a temperature rating above 60°C (140°F); check the manufacturer specification before using it immediately adjacent to an infrared unit.

Walls and ceiling

Tile or stone on cement backer board is the most durable wall finish for the area immediately around a sauna. Paint directly on standard drywall will peel and bubble under the humidity swings of regular use. If budget or aesthetics favour painted walls, use a bathroom-rated semi-gloss on moisture-resistant drywall and plan to repaint every few years. The ceiling directly above the sauna area should receive the same treatment as the walls—moisture rises, and a ceiling finished in materials not rated for humidity will show damage first.

Wood species inside the cabin

The interior of the sauna cabin is where wood species choice matters most. Canadian Hemlock is hypoallergenic, dimensionally stable under heat cycling, and has a subtle grain that suits minimal interiors. Western Red Cedar is the most aromatic and naturally rot-resistant. Nordic Spruce is lightweight with a pale, bright tone. All three are low-resin species suitable for sauna use; avoid dense, high-resin woods that can become uncomfortably hot to the touch or off-gas at elevated temperatures. Calore's indoor infrared sauna uses Grade-A Canadian Hemlock throughout—a solid, single-species interior with no adhesive-bonded composite panels that could off-gas under heat. Browse sauna accessories for backrests, headrests, and floor mats designed to work within the thermal environment of an infrared cabin.

5 Steps to a Successful Bathroom Sauna Install

The homeowners who end up with a bathroom sauna they actually use every day are the ones who planned carefully before buying anything. These five steps, in order, prevent the most common and costly mistakes.

1. Measure ceiling height, floor area, and door swing before selecting a unit. Take the ceiling measurement at the lowest point in the area being considered, not the highest. Draw the door arc on a paper floor plan and confirm it clears all fixtures. The unit must fit the room you have, not the room you imagine.
2. Audit the electrical panel before ordering. Have a licensed electrician check whether a new dedicated circuit—120V/20A for infrared or 240V/30–50A for traditional—can be added without a panel upgrade. Get a quote for the circuit run before committing to a unit type. The electrical cost difference between infrared (120V) and traditional (240V) is often more significant than the unit price difference.
3. Plan the vapour barrier and ventilation upgrade as part of the install, not an afterthought. Order the foil-faced barrier, aluminium tape, and moisture-resistant gypsum board at the same time as the unit. Confirm the exhaust fan duct runs to the exterior, not the attic, and upgrade the fan to 50–80 CFM with a timer switch before the first session.
4. Assemble the cabin in the bathroom, not in a hallway. Most prefabricated infrared cabins arrive in modular panels designed for on-site assembly. Assemble inside the bathroom where it will live—a fully assembled unit rarely fits through a standard 80 cm (32 in) bathroom door. Read the assembly sequence fully before starting; the order of panels matters for panel-clip alignment and door hinge placement.
5. Run a dry test session before declaring the install complete. Power the unit to operating temperature with no one inside, then check: the dedicated circuit breaker holds without tripping, the exhaust fan runs and moves air noticeably, the cabinet exterior does not contact any wall surface that could scorch or discolour, and the door closes and latches cleanly. Only after a clean dry run is the install ready for use.
