How to Set Up a Red Light Sauna at Home
To set up a red light sauna at home, you need three things: a dry, level space of at least 1.2 x 1.2 m with a 2 m ceiling, the right power (a 120 V / 15–20 A circuit for a 1–2 person cabin, or a dedicated 240 V line for larger units), and a red light source delivering red 630–670 nm and near-infrared 810–880 nm light held 15–45 cm from your skin. Choose one of three setups — an infrared cabin with integrated red light, a standalone panel in a heated room, or a portable blanket plus panel — then wire it safely, test it, and start with short sessions.
Key Takeaways
- A red light sauna pairs infrared heat with red (630–670 nm) and near-infrared (810–880 nm) LED light in one dry, comfortable session at 50–75°C.
- Three setup paths: an infrared cabin with integrated red light, a standalone panel in a heated room, or a portable blanket plus panel. Explore full cabins in the Calore sauna collection.
- Wiring matters most: 1–2 person units run on 120 V / 15–20 A; 3–5 person cabins usually need a dedicated 240 V / 30–40 A circuit installed by a licensed electrician.
- Hold red light panels 15–45 cm from skin, wear rated eye protection, and only run panels inside the heat if they are sauna-rated to 65°C+.
- Budget roughly $800–$3,400 CAD for a DIY or portable setup and $8,000–$22,000 CAD for a premium integrated cabin; running costs are only about $2–3 CAD a month.
- Start low and short — 2–3 sessions of 10–15 minutes in week one — and build up over several weeks.
What is a red light sauna, and why build one at home?
A red light sauna is a heated cabin or room that combines infrared warmth with red and near-infrared LED light. Instead of heating the air to 80–100°C like a traditional Finnish sauna, an infrared sauna warms your body directly, so sessions stay comfortable at 50–75°C (120–170°F) — cool enough to sit under therapeutic light for 15–25 minutes without overheating.
The light does the second job. Red wavelengths around 630–670 nm reach the skin surface, while near-infrared around 810–880 nm penetrates deeper into tissue. Research on regular dry sauna bathing points to improved circulation and relaxation, and dermatology studies on red light have reported measurable gains in skin elasticity over roughly 12 weeks. Building one at home turns a spa or gym visit into a five-minute walk down the hall — which is why Canadian home-sauna ownership has climbed steadily over the past decade.
How do you plan the space?
Pick a dry, level spot with a hard, water-resistant floor and a nearby outlet before you buy anything. The right room is the difference between a daily ritual and a dust-collecting afterthought.
Location and footprint
Good candidates are a spare bathroom (already water-resistant and vented), a basement corner (concrete floor, room for a larger cabin), an insulated garage, or a dedicated wellness room where you can pair heat with a cold plunge. Aim for an ambient room temperature above 16°C for efficient preheating — a cold winter garage will drag out heat-up times. Measure doorways, staircases and hallways too: most flat-pack cabin panels slide through a standard 81 cm (32-inch) doorway, but confirm before delivery day.
| Cabin size | Width | Depth | Min. ceiling |
|---|---|---|---|
| 1-person infrared | 100–122 cm | 90–115 cm | 200–213 cm |
| 2-person infrared | 127–152 cm | 107–122 cm | 200–213 cm |
| 4-person infrared | 165–190 cm | 122–140 cm | 213 cm+ |
Flooring and ventilation
Tile, vinyl or sealed concrete work best; avoid thick carpet, which traps heat and moisture. For a portable setup, lay a waterproof mat to catch sweat. Even a dry infrared cabin benefits from airflow, so keep a window, vent fan, or open-door cool-down area nearby.
Which of the three setup types is right for you?
There are three practical ways to build a red light sauna at home. Your choice comes down to space, budget and how permanent you want it.

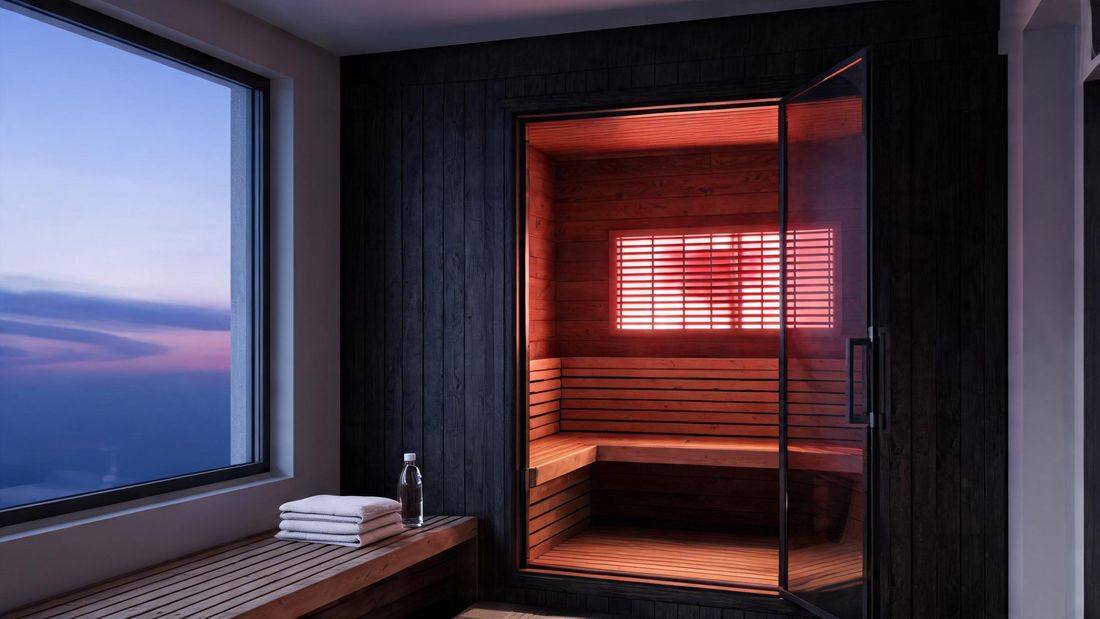

Option 1 — Infrared cabin with integrated red light
This is the gold standard: a full-spectrum infrared cabin with a built-in, sauna-rated red light panel and low-EMF carbon heaters. You get deep infrared heat and red/near-infrared light in one immersive session, plus features like chromotherapy lighting and digital controls. It is the best long-term value if you own your home. Calore's indoor infrared sauna is designed for exactly this kind of permanent home install.
Option 2 — Standalone red light panel in a heated room
If a full cabin will not fit, mount a wall or freestanding LED panel in a small, warm room and add a compact infrared heater to create a quasi-sauna. This reuses existing space and keeps costs moderate. A dedicated red light therapy panel at 660 nm red and 850 nm near-infrared, mounted at chest-to-face height when seated, is the core piece here.
Option 3 — Portable blanket plus panel
Combine a portable infrared sauna or heat blanket with a small red light panel at the end of a lounge chair. It stores in a closet, usually runs on a standard 120 V outlet, and moves with you — ideal for renters and apartments.
Panel placement, distance and wavelengths
Position the panel so the light reaches the body area you care about, and keep it 15–45 cm (6–18 inches) from your skin. Because heat makes the light feel stronger, start at the farther end of that range inside a hot cabin and move closer only if comfortable.
For wavelengths, the useful combination is red at roughly 660 nm for skin-surface effects and near-infrared at roughly 850 nm for deeper tissue. Clinical-grade panels aim for at least 50 mW/cm² (ideally 100) of irradiance measured at about 15 cm. Mount panels at eye-to-chest level when you are seated, route cords away from walking paths and heat sources, and always wear eye protection rated for red and near-infrared light with high-output panels.
Combining red light with sauna heat
You can run red light and heat together, but only if the panel is built for it. Standard LED panels can fail — or void their warranty — under prolonged sauna temperatures and humidity.
Two approaches work. Simultaneous: a sauna-rated panel runs for the whole session, which is the most time-efficient. Sequential: you do 5–10 minutes of red light before or after the heat, in a cooler spot, which protects a non-rated panel and gives you tighter control over your light dose. Heat dilates blood vessels and may help light penetrate, but longer sessions can also change your effective dose — more is not always better, so follow the manufacturer's weekly exposure guidance.
Electrical and safety requirements in Canada
Correct wiring is the single most important part of the build — it prevents tripped breakers, overloaded circuits and fire risk. Infrared heaters and red light panels both draw real current, so plan the load rather than guessing.
Electrical safety — do not improvise. In Canada, wiring must meet the Canadian Electrical Code. Hire a licensed electrician before installing any 240 V unit, working in a home built before the mid-1990s, or running a new circuit to a basement, garage or outdoor location. Use a dedicated circuit — never an extension cord or shared outlet — and fit GFCI protection in any damp-prone area like a bathroom or basement. Install a smoke detector near, but outside, the cabin, and never leave a sauna or panel running while you are away.
| Setup type | Typical power draw | Circuit | Heat-up time |
|---|---|---|---|
| 1–2 person infrared sauna | 1,200–1,800 W | 120 V / 15–20 A | 30–45 min |
| 3–5 person infrared sauna | 3,000–6,000 W | 240 V / 30–40 A | 15–20 min |
| High-output red light panel | 300–1,500 W | 120 V / 15–20 A | Instant |
| Portable sauna blanket | 400–800 W | 120 V / 15 A | 10–15 min |
If you run a red light panel and the sauna on the same circuit, add their wattages together and keep the total under about 80% of the circuit's capacity. When in doubt, put the panel on its own outlet. Look for units with digital controls, clearly labelled switches and auto-shutoff timers — they are markers of a safe, well-built product.
How much does it cost in CAD?
Costs range widely depending on whether you buy a premium cabin, build a DIY panel setup, or go portable — but the cost per session drops sharply with regular use. Prices below are approximate Canadian figures; exchange rates and shipping shift them.
| Setup | Approx. upfront (CAD) | Power | Best for |
|---|---|---|---|
| Premium 2-person indoor infrared + red light cabin | $8,000–$12,500 | 120 V or 240 V | Couples, permanent install |
| Premium 4–5 person outdoor infrared + red light | $15,000–$22,000 | 240 V | Families, backyard wellness |
| Red light panel + room heater (DIY) | $1,400–$3,400 | 120 V | Single users, DIYers |
| Portable blanket + small panel | $800–$1,600 | 120 V | Renters, small spaces |
Budget for extras too: an electrician running a 240 V line typically costs $400–$1,400 CAD, delivery and assembly $150–$400, and floor mats $70–$200. Running costs are the easy part — a 2 kW sauna used four times a week draws about 4 kWh weekly, which at a typical Canadian rate near $0.15/kWh works out to roughly $2–3 CAD a month. Rates vary by province.
Step-by-step setup
Here is the full sequence from empty room to first session, using a 1–2 person integrated cabin as the example.
- Plan and measure. Confirm floor space, ceiling height, and that panels will fit through your doorways, stairs and halls. Sketch bench orientation, door swing and the nearest outlet, and verify the circuit capacity.
- Prepare the room. Clear the floor, lay a protective mat, confirm your 120 V outlet or pre-installed 240 V line, wipe down surfaces, and pre-position towels, a water bottle and a timer.
- Assemble the cabin. Set the base panel level, attach the back wall first, then the sides, connect the labelled bench-heater cables, fit the front and glass door, then lower the roof and route the cables through their openings. Use two adults and never force tongue-and-groove joints.
- Install the red light. For integrated units, connect the pre-wired, labelled plugs to the control panel and confirm the LEDs light. For a separate panel, mount it to a stud or heavy stand at eye-to-chest height and keep cords clear of heat and walkways.
- Connect power and test. Plug into the correct outlet (or have your electrician finish the 240 V connection), run a 10–20 minute test cycle, and confirm the heaters warm, the light activates, and there are no burning smells or unusual noises. A faint wood scent on first use is normal.
- Fine-tune the space. Add a cool-down stool, towel hooks and a storage basket for goggles and remotes, set subtle evening lighting, and program your starting temperature (50–65°C) and session length (10–25 minutes). A sauna LED light kit is an easy way to set the mood without adding heat.
Dialling in your routine
Good habits earn back your investment faster than any single feature. Consistency over months beats occasional marathon sessions, so build a schedule you can keep.
| Experience | Sessions / week | Duration |
|---|---|---|
| Beginner (month 1) | 2–3 | 10–15 min |
| Intermediate (months 2–3) | 3–4 | 15–20 min |
| Regular (ongoing) | 4–5 | 20–25 min |
Hydrate with about 500 mL of water beforehand, wear light clothing or just a towel so the light reaches your skin, and start around 50°C before working up. Many people prefer evening sessions to wind down. To build the full ritual, alternate or follow your heat with a cold plunge or cold shower — explore contrast options in the Calore cold plunge collection. Breathe deep, heat up, cool down, relax, repeat.
Keeping it running for years
A little upkeep keeps the wood, heaters and LEDs performing and protects your warranty. After each session, leave the door open 15–30 minutes to air out, wipe benches with a soft cloth and mild non-toxic cleaner, and let sweat residue dry before closing up. Weekly, wipe the interior wood and the cool, unplugged LED surfaces with a dry microfibre cloth, and check for loose hardware or gaps in the panel seams. Quality low-EMF heaters and LEDs are rated for tens of thousands of hours — at 3–5 sessions a week, that is often 10–20 years of use.
Expert Verdict
Setting up a red light sauna at home is far more approachable than it looks once you break it into three decisions: the space, the wiring, and the light. Nail a dry, ventilated spot; match the circuit to the unit and get a licensed electrician for anything 240 V; and hold a 630–880 nm panel 15–45 cm from your skin. Choose the setup that fits how you live — integrated cabin, standalone panel, or portable — rather than the biggest one you can find. Key finding: the highest-value home red light sauna is the one whose electrical is done right and whose routine you will actually keep — start with 2–3 short sessions a week and let the ritual build from there. Browse full cabins in the Calore sauna collection.
Frequently Asked Questions
Can I convert a traditional sauna into a red light sauna?
You can, but with care. Only add LED panels specifically rated for high heat (150°F / 65°C and above), and never mount them where steam hits directly. A hot, humid Finnish-style sauna is harder on electronics than a dry infrared cabin, so many people simply run their red light session before or after the heat instead. If you want both in one unit, the cleanest route is an infrared sauna with an integrated, sauna-rated red light panel rather than retrofitting.
How far should I sit from the red light panel inside a sauna?
Most manufacturers recommend 15–45 cm (6–18 inches) between your skin and the LEDs. Heat inside a sauna makes the light feel more intense, so start at the farther end of that range and adjust. Always follow the distance and time your specific panel lists, and use eye protection rated for red and near-infrared light with high-output panels.
Is a red light sauna safe if I have high blood pressure or a heart condition?
Not without medical clearance. Heat raises your heart rate and dilates blood vessels, so anyone with high blood pressure, a heart condition, who is pregnant, or who has another medical concern must speak with their physician before using infrared heat or red light therapy. If you are cleared, begin at lower temperatures (around 45–50°C / 110–120°F) and shorter sessions (8–10 minutes) and watch how your body responds.
Can I use a home red light sauna every day?
Many healthy adults use a sauna 3–7 days a week without issue, but build up gradually. Start with 2–3 sessions per week for the first month, then add days as your tolerance grows. Stop and rest if you notice dizziness, unusual fatigue, dehydration, or headaches. Consistency over months matters far more than occasional long sessions.
Will a red light sauna spike my electricity bill in Canada?
For most home users it is modest. A 2 kW infrared sauna run for 30 minutes four times a week uses about 4 kWh per week. At an average Canadian electricity rate near $0.15/kWh, that is roughly $2–3 per month — less than a couple of coffees. Larger 240-volt cabins cost more but usually still run under $10–15 monthly. Rates vary by province, so check your local kWh price.
How do I use a red light sauna as a beginner?
Start low and short: about 45–50°C (110–120°F) for 10–15 minutes, two to three times in your first week. Drink water before and after, wear light clothing or a towel so your skin is exposed to the light, and run the red light panel for the whole session or 5–10 minutes at a comfortable distance. Increase temperature and time slowly over several weeks, and exit immediately if you feel lightheaded.
