Sauna Ventilation: The Complete Design Guide
Sauna ventilation is the single structural decision that determines whether every session feels crisp and restorative or hot, stuffy, and draining. Properly designed, it delivers 4 to 6 air changes per hour, positions the intake vent 4 to 12 inches above the floor near the heater and the exhaust vent on the opposite wall 6 to 12 inches below the ceiling, and uses diagonal cross-room airflow to eliminate dead zones. That geometry keeps oxygen levels comfortable, holds moisture in check so the cedar structure stays sound, and lets the heater distribute heat evenly from floor to upper bench. Get the layout right once and it works passively, session after session, without fans or mechanical help.
Key Takeaways
- Diagonal airflow is the foundation. Inlet near the floor by the heater, exhaust on the opposite wall near the ceiling — that path circulates air through the entire room and avoids stagnant pockets under the benches.
- Target 4 to 6 air changes per hour (ACH). Below 4 ACH the air becomes stuffy and CO2 climbs; above 6 ACH heat bleeds out faster than the heater can replace it. A paired 4×6-inch vent set hits this range in most home rooms.
- Vent sizing scales with the room and heater. Finlandia Sauna, a national sauna manufacturer, specs a 4×10-inch rough opening as standard for most home builds; larger rooms or higher-output heaters may need a bigger opening or mechanical assist — always check your heater manufacturer’s specification.
- Infrared saunas need less, not zero. Lower operating temps (45–60°C / 113–140°F) mean less steam, but CO2 still builds in sealed rooms and body odour accumulates in the wood panels — a simple passive vent pair is non-negotiable.
- Never seal every gap. Over-insulating kills airflow, traps moisture, and accelerates mould in the wall cavity behind the cedar boards, shortening the life of your structure dramatically.
- Browse ready-to-install sauna builds at Calore’s sauna collection — every unit ships with engineered vent placement to spec.
Why sauna ventilation matters more than most owners realise
Proper sauna ventilation does four jobs simultaneously: it replenishes oxygen, controls humidity, protects the wood structure, and lets the heater do its job efficiently. Fail at any one of them and the experience degrades or the structure suffers — often both. Most owners think ventilation is about comfort. It is also about longevity.
Oxygen and CO2 management
A sealed sauna room depletes available oxygen and accumulates carbon dioxide from normal breathing faster than most people expect. At typical session lengths of 15 to 20 minutes with two or more bathers, CO2 concentrations can rise to levels that cause fatigue, mild headache, and lightheadedness well before anyone realises the culprit is air quality rather than heat. Continuous fresh-air exchange keeps CO2 diluted and oxygen at comfortable levels throughout the session. The National Institutes of Health overview of hypoxia (Bhutta, Alghoula & Berim, 2024) confirms that even modest reductions in ambient oxygen produce measurable fatigue — a useful reminder that sauna atmosphere is a real physiological variable, not just a comfort preference.
Moisture and mould control
Sweat, steam from löyly (water poured on the stones), and breath raise relative humidity dramatically inside a traditional sauna during a session. Without exhaust ventilation to flush that moisture out after bathing, it migrates into the wood panels, the vapour barrier, and the wall cavity behind. Over months this produces mould, rot, and structural damage that is expensive to repair. Even in infrared saunas, where there is no steam, body moisture still saturates the air during a session. Post-session drying — leaving the door ajar or opening a high drying vent — depends entirely on having the right airflow architecture in place.
Even heat distribution
Without cross-room air movement, heat stratifies sharply: the air near the ceiling can be 30°C (54°F) hotter than the air at floor level. That stratification means the top bench is overwhelmingly hot while the lower bench stays tepid, and the heater has to work harder to compensate. A proper intake-to-exhaust path keeps air circulating so the temperature gradient from floor to ceiling is gradual and both bench levels become usable. Consistent heat also means the heater runs fewer cycles, extending its service life.
How sauna ventilation works: the diagonal airflow principle

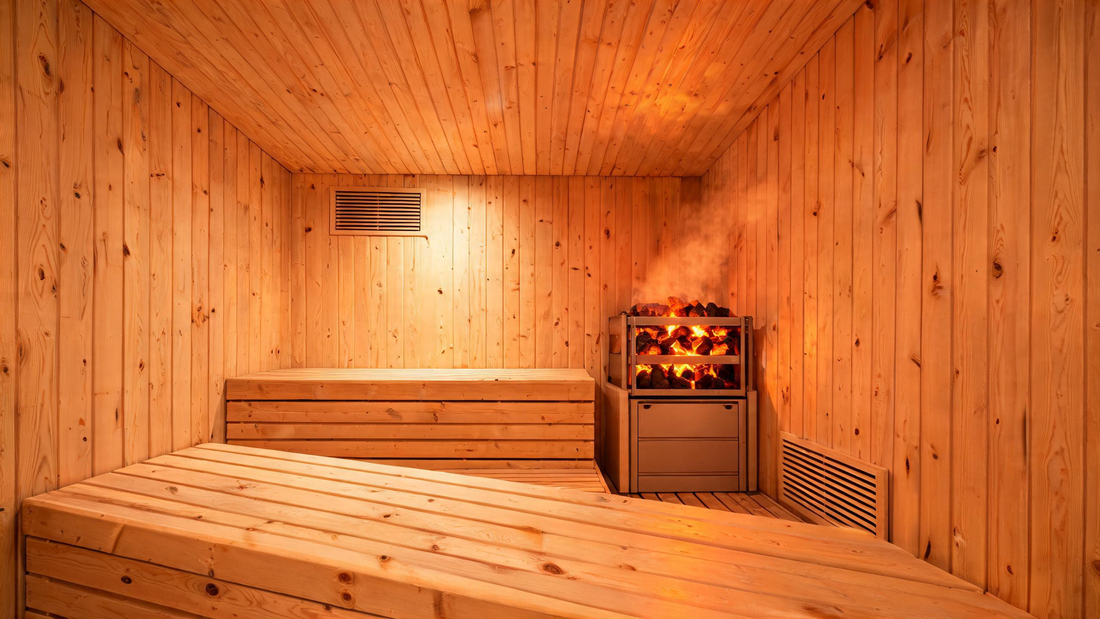

The governing principle of sauna ventilation is diagonal flow — fresh air enters at floor level near the heat source, rises and warms, crosses the room, and exits at the top of the opposite wall. That diagonal path is the longest possible route through the room, so the incoming air contacts every cubic metre before leaving, eliminating the dead zones that form when both vents sit on the same wall or at the same height.
Here is the physics in plain terms. The heater heats the air immediately above it, causing that air to rise. Meanwhile the intake vent admits cooler, denser outdoor air near the floor. The temperature differential creates a gentle convection current. As the warm air rises and moves toward the far wall, it sweeps across the bench level where bathers sit, delivering a fresh-air wave from below rather than above. The exhaust vent, placed high on the far wall, captures the warmest and most CO2-laden air that has drifted to the ceiling and routes it out.
The gap under the door: Many experienced builders leave a 2.5–5 cm (1–2-inch) gap under the sauna door as a passive supplement to the intake vent. This provides an additional fresh-air source and prevents negative pressure from building when the exhaust vent pulls air out faster than the inlet supplies it. If your sauna door fits perfectly flush to the sill, a small drilled or routed slot at the base achieves the same effect.
Sauna ventilation layout: component, placement, and purpose
The table below is the reference for any sauna build or renovation — three components, their exact placement relative to heater and ceiling, and what each one is actually doing in the airflow system. Print it, tape it in the rough-in stage, and check off each component before you close the walls.
| Component | Placement | Purpose |
|---|---|---|
| Fresh-air intake vent | Same wall as heater, 10–30 cm (4–12 in) above floor; directly behind or beside the heater base | Admits cool, oxygen-rich outdoor air; positions it to warm immediately as it rises past the heater stones, creating the convection current that drives passive airflow |
| Exhaust vent (primary) | Opposite wall from heater, 15–30 cm (6–12 in) below ceiling; or beneath the top bench for the “downward ventilation” method | Removes hot, CO2-laden, humid air from the room; the high placement captures the most saturated air at the ceiling; bench-level placement (downward ventilation) is used when ceiling-height exhaust is not possible or when forced mechanical flow is added |
| Drying vent (post-session) | High on any wall, near ceiling; kept closed during the session | Opened fully after bathing to flush residual moisture rapidly; accelerates drying of the cedar panels and sub-structure, preventing mould; optional in outdoor saunas with good passive draw but strongly recommended for indoor rooms |
For larger indoor installations, a low-CFM exhaust fan mounted at the exhaust vent position replaces or supplements the passive exhaust. Sauna builders commonly size mechanical exhaust fans at 50–80 CFM for a standard 2–4 person home sauna room to guarantee a minimum of 4 ACH regardless of outdoor temperature differentials that affect passive draw.
Passive vs mechanical sauna ventilation: which do you need?
Passive (gravity-driven) ventilation uses the temperature difference between indoor sauna air and outdoor air to move airflow without fans — it works reliably in most home saunas and is the quieter, lower-maintenance choice. Mechanical ventilation adds a fan or inline blower to guarantee airflow when passive draw is insufficient.
Passive systems work best when:
- The sauna is in an outdoor structure or a room with direct exterior wall access for both vents
- The heater is at least 6 kW (enough thermal mass to generate a strong convection current)
- The indoor-to-outdoor temperature differential during winter creates strong natural draw
- The sauna is used by one to two bathers at a time
Mechanical ventilation is worth adding when:
- The sauna is a deep interior room where both vents must connect to conditioned indoor air rather than the exterior
- Three or more bathers use the room regularly (higher CO2 load and sweat volume)
- The build uses a lower-wattage or infrared heater with less thermal output to drive passive flow
- Post-session drying is slow due to a humid climate or enclosed basement location
Wood-burning saunas need combustion air, not just ventilation. A wood-burning kiuas (stove) must have a dedicated combustion-air inlet sized to the firebox specifications, completely separate from the room ventilation vents. Undersizing this inlet starves the fire of oxygen, produces incomplete combustion, and can allow carbon monoxide to enter the sauna room. Always follow the stove manufacturer’s chimney and combustion-air requirements, and install a CO detector in any wood-fired sauna.
Infrared vs traditional sauna ventilation requirements
Traditional Finnish saunas and infrared cabins both need sauna ventilation, but the intensity of the requirement differs significantly because the two types operate at different temperatures and produce different amounts of humidity.
| Criterion | Traditional / Steam Sauna | Infrared Sauna |
|---|---|---|
| Operating temperature | 80–100°C (176–212°F) | 45–60°C (113–140°F) |
| Steam / humidity load | High — löyly creates large moisture spikes | Low — no steam; humidity from perspiration only |
| CO2 buildup risk | Higher — hot air depletes O2 faster in a sealed room | Moderate — lower heat, longer sessions at lower ACH |
| Recommended ACH | 4–6 ACH (active passive or mechanical) | 3–4 ACH minimum; often achievable with a door gap alone |
| Post-session drying | Critical — high moisture must be flushed quickly | Important but less urgent; still protects wood panels |
| Vent sizing | Standard vent pair (Finlandia Sauna specs a 4×10-inch rough opening); larger for bigger rooms or heaters | Smaller passive pair or door gap often sufficient |
If you are planning an indoor infrared installation, the Calore Black Cedar Sauna Chamber is pre-engineered with integrated panel layout and vent knock-out locations to make passive airflow straightforward in a standard room. For those choosing a traditional heater-and-rock setup, explore the Calore sauna heater collection — each heater listing includes the recommended vent sizing for its output class.
For the electrical side of your sauna build — circuit sizing, dedicated breaker requirements, and what inspectors look for — see our companion guide on electrical requirements for a home sauna.
Sizing your sauna ventilation correctly
Vent sizing is not one-size-fits-all: it scales with the heater output class and the room volume, and getting it wrong in either direction causes problems. Under-sized vents starve the room of fresh air; over-sized vents bleed heat faster than the heater can replace it, forcing longer warm-up times and higher energy bills.
Finlandia Sauna, a national sauna room manufacturer, specifies a standard rough vent opening of 4 inches by 10 inches (10 × 25 cm) for their sauna packages — the lower intake vent placed about 4 inches from the floor near the heater, and the upper exhaust vent typically about 6 inches from the ceiling (it can be placed as low as 24 inches from the floor if needed). With both vents open, this configuration produces the same 4 to 6 air changes per hour referenced throughout this guide.
Vent sizing does not need to scale precisely with heater wattage for most home builds. A single, generously sized vent pair — on the order of Finlandia’s 4×10-inch reference opening — handles the majority of home sauna heaters. Larger rooms, higher bather loads, or heaters with unusually high thermal output may warrant a larger opening or a mechanical assist; when in doubt, follow your specific heater manufacturer’s vent-sizing instructions, since they account for that unit’s exact BTU output and recommended room volume.
On air quality and ACH targets: Writing for the North American Sauna Society, sauna researcher Lassi A. Liikkanen, PhD, notes that air quality depends on more than temperature alone — humidity, CO2, and oxygen levels all matter, and that traditional Finnish guidance has long called for exchanging a room’s air roughly 3 to 6 times per hour, with good mixing between fresh and used air being just as important as total airflow volume.
5 sauna ventilation mistakes that wreck air quality
Most sauna ventilation failures trace back to one of five structural errors, and almost all of them are easier and cheaper to fix at the rough-in stage than after the cedar boards are nailed in. Here is the list in order of how commonly they appear in poorly performing home saunas.
- Both vents on the same wall. Placing the intake and exhaust on the same wall creates a short-circuit loop where air enters, immediately exits, and bypasses the rest of the room entirely. The opposite bench wall stagnates while the heater wall gets all the fresh air. Always place intake and exhaust on opposite walls.
- Installing only one vent. A single vent — whether intake or exhaust only — cannot establish a through-flow. Air enters but has nowhere to exit efficiently, or exits but is replaced by infiltration through door gaps and random cracks rather than a controlled fresh-air source. You need both a dedicated inlet and a dedicated outlet.
- Using metal ducts or metal vent covers inside the chamber. Metal heats to sauna temperatures, radiates unevenly, and poses a burn hazard if bathers brush against it. Use wood-frame louvered vents with adjustable slats, made from the same heat-safe species as the sauna interior — cedar, hemlock, or aspen. Metal ductwork is acceptable in the wall cavity outside the vapour barrier, but never exposed inside the heated room.
- Sealing the sauna completely airtight. Foam-sealing every penetration and gap in an effort to maximise heat retention turns the sauna into a sealed box. Without a controlled air-exchange path, any residual airflow happens through the heater’s own combustion or convection cycle rather than a vent pair — an inefficient and potentially uncomfortable arrangement. Leave the designed vent openings clear and use adjustable louvers to manage flow during different phases of the session.
- Closing vents during the session to trap heat. This is the most common user-level mistake. Closing both vents while occupied feels like it holds heat, but it rapidly degrades air quality. If heat loss is the concern, the solution is better insulation and a tighter door seal — not sacrificing the air exchange that keeps the session comfortable and safe. Use adjustable vents to reduce but not eliminate flow during pre-heat, then open them to the operating position before entering.
All Calore sauna units ship with the vent locations pre-specified and the cedar louvres included — the engineering is already done so you do not have to guess at placement during the build.
Expert Verdict: One Layout, Every Session
Sauna ventilation is not complicated once you understand the diagonal principle: inlet low near the heater, exhaust high on the opposite wall, sized to the heater output class, and left open whenever the room is occupied. Get that geometry right and passive airflow handles the rest — fresh oxygen in, humid CO2-laden air out, even heat across both bench levels, and a dry cedar structure that lasts for decades. Infrared saunas need a lighter touch than traditional steam rooms, but they still need a vent pair. Mechanical assistance is only worth adding when a passive system cannot reach 4 ACH due to room depth or bather load. The five mistakes — same-wall placement, single-vent installs, metal louvers, airtight sealing, and closed vents during sessions — are all easy to avoid at the planning stage and expensive to fix afterward. Key finding: correct intake-exhaust placement on opposite walls, sized by heater output, is the one decision that determines whether every session is crisp and comfortable or stuffy and damaging to the structure — it costs nothing extra to get right at the rough-in stage.
Frequently Asked Questions
Do you need ventilation for a sauna?
Yes, every sauna needs ventilation. Even though a well-insulated sauna can maintain heat without it, ventilation serves three non-negotiable functions: replenishing oxygen so CO2 does not build to fatiguing levels, removing moisture-laden air to protect the wood structure from rot and mould, and evening out temperature so both benches heat consistently. A small passive system with one inlet and one exhaust vent is sufficient for most home saunas. Skipping ventilation entirely risks stuffiness, structural damage, and a progressively unpleasant bathing experience.
What is the best venting for a sauna?
The best sauna ventilation layout uses diagonal airflow: a fresh-air inlet vent placed 4 to 12 inches above the floor near the heater, and an exhaust vent on the opposite wall 6 to 12 inches below the ceiling. This path pulls cool air up through the heater, warms it, distributes it across the room, and exits stale humid air at the top. For most home saunas a passive gravity-driven setup achieves 4 to 6 air changes per hour without any fan. Larger installations or rooms with poor natural draw benefit from a low-CFM inline exhaust fan to guarantee consistent exchange.
Where should sauna vents be placed?
Place the intake vent 4 to 12 inches above the floor on the same wall as the heater, or directly behind the heater base. This lets incoming cool air warm immediately as it rises past the heater stones. Place the exhaust vent on the opposite wall, 6 to 12 inches below the ceiling, to pull the hottest and most humid air out of the room. Never put both vents on the same wall, because that creates a short loop that bypasses most of the room and leaves dead zones of stagnant air near the opposite wall and under the benches.
How many air changes per hour does a sauna need?
Most sauna builders and ventilation guides target 4 to 6 air changes per hour (ACH). At that rate, oxygen is continuously replenished, CO2 stays well below comfort thresholds, odours are flushed promptly, and humidity stays in a controllable range. Fewer than 4 ACH produces stuffiness and faster moisture buildup. More than 6 ACH in a passive system usually means the vents are oversized and heat bleeds out faster than the heater can replace it, forcing longer warm-up times and higher energy use. A 4-inch intake and 6-inch exhaust vent pair typically achieves this range in a standard home sauna room.
Does an infrared sauna need ventilation?
Yes, though infrared saunas need less aggressive ventilation than traditional Finnish saunas because they operate at lower temperatures (45 to 60 degrees Celsius versus 80 to 100 degrees) and produce no steam. The lower heat output means less moisture and less thermal pressure to drive passive airflow. Even so, CO2 from breathing still accumulates in a sealed room, and the wood panels can absorb body odour and humidity over time without some air exchange. A simple passive vent pair, or even a small gap under the door, is usually enough to keep an infrared cabin comfortable and structurally sound.
Can I close sauna vents to trap heat?
No. Closing both vents during a session traps heat temporarily but quickly degrades air quality. CO2 from breathing rises, oxygen drops, and the air becomes humid and stuffy, which is what makes some sauna sessions feel draining rather than refreshing. If you find your sauna losing heat too quickly, the fix is better insulation and door seals, not closing the vents. Adjustable vent louvers let you reduce airflow during pre-heat and then open them to a comfortable position once you enter. Keep at least the intake vent cracked at all times when the sauna is occupied.
