Sauna Electrical Requirements: The Complete Guide

Sauna electrical requirements depend entirely on your sauna type and heater size. Small plug-in infrared saunas run on a 120V, 15–20A dedicated circuit drawing roughly 1.5–2 kW. Larger infrared models and all traditional electric saunas need a 240V dedicated circuit with a double-pole breaker sized 30–60A depending on the heater’s kilowatt rating. Wood-fired saunas require no electric heater supply at all. In every case, the circuit must be dedicated to the sauna alone, sized at 125% of the heater’s rated current per the National Electrical Code (US) and the Canadian Electrical Code (Canada), and installed by a licensed electrician with a permit. Below is the complete breakdown by sauna type, plus wiring gauge, GFCI rules, and the six installation steps.

Sauna electrical requirements by type: the fast reference table

The single most important factor in sauna wiring is the sauna type, because it determines voltage, amperage, and connection method before you ever open a panel. The table below gives the headline numbers for each category. Use it as a starting point — your specific heater’s nameplate rating and your electrician’s site assessment will set the final circuit specification.

Plug-in infrared saunas: sauna electrical requirements on 120V

A plug-in infrared sauna is the only category of home sauna that runs on standard 120V household voltage — but “standard voltage” does not mean “any outlet.” Even a compact 1–2 person infrared cabin draws a continuous high current, and it must have its own dedicated circuit with no other loads sharing the breaker. This is not optional: sharing with a refrigerator, hair dryer, or space heater creates a sustained overload that will trip the breaker repeatedly and, at worst, can damage wiring.

What “dedicated circuit” means for a 120V sauna

A dedicated 120V circuit runs its own breaker from your electrical panel, its own wire, and its own outlet — nothing else connects to that breaker. Entry-level infrared units drawing around 1.4 kW typically need a 15A circuit with a NEMA 5-15R receptacle. Most quality 1–2 person infrared cabins, including Calore’s indoor infrared sauna, specify a 20A dedicated circuit with a NEMA 5-20R receptacle. Some higher-output 120V models require a 30A locking receptacle (NEMA L5-30R) that will not accept a standard plug — always verify against the heater’s nameplate and manual before purchasing or installing.

Limitations of 120V sauna installations

The trade-off for plug-in simplicity is lower peak performance. A 120V infrared sauna typically reaches 54–71°C (130–160°F) and may take 45–60 minutes to warm up, compared to 82–88°C (180–190°F) and 20–35 minutes for a properly sized 240V system. For daily rituals and deep-sweat infrared sessions, that range is entirely adequate — but if you are after the intense heat of a Finnish-style löyly sauna, a 120V unit will not deliver it. Never use an extension cord for any sauna heater at any voltage; the cord will overheat under sustained load and is a documented fire risk.

Traditional electric and larger infrared saunas: sauna electrical requirements on 240V

The majority of home saunas — every traditional Finnish electric sauna and any infrared cabin above roughly 2 kW — require a 240V dedicated circuit, which is a materially different installation from a 120V plug-in setup. This is the tier where “consult an electrician” shifts from advice to code mandate: a 240V circuit requires a double-pole breaker, heavier copper wire, often a local disconnect switch, and a permit and inspection in every Canadian province and US state.

What a 240V sauna circuit involves

A 240V dedicated circuit uses a two-pole breaker that occupies two slots in your panel and delivers two 120V legs in phase to produce 240V. The breaker size is set by the heater’s kilowatt rating after applying the 125% continuous-load multiplier. For a 4.5 kW heater the calculation is 4,500 W ÷ 240V = 18.75A × 1.25 = 23.4A — round up to a 30A double-pole breaker. For a 6 kW heater: 25A × 1.25 = 31.25A — a 40A breaker. Wire runs from the panel to either a dedicated 240V receptacle (for plug-in type infrared cabins: NEMA 6-20R, L6-20R, or L6-30R) or directly to a hard-wired junction box outside the sauna’s hot zone.

Many jurisdictions also require a local disconnect switch positioned within sight of the sauna, so the circuit can be de-energized quickly during maintenance or an emergency. Your electrician will confirm whether this applies under the NEC edition your municipality has adopted or under the applicable CEC rule.

Panel capacity check

Before committing to a 240V sauna circuit, a licensed electrician will assess your panel’s remaining capacity. A modern 200A service panel can generally accommodate a 30–40A sauna circuit alongside typical household loads. Older homes with 60A or 100A service — common in Canadian housing stock built before the 1980s — may require a service upgrade or a dedicated subpanel before the sauna circuit can be safely added. Skipping this assessment and simply installing the breaker is a code violation and a genuine fire risk.

For those looking at Calore’s electric sauna heaters, each heater’s product page lists the required voltage, amperage, and connection type so you can share the spec sheet directly with your electrician before the install begins.

Wood-fired saunas: what sauna electrical requirements exist?

A wood-fired sauna uses combustion — not electricity — for heat, so the electrical requirements are dramatically simpler than any electric or infrared model. If you want lighting inside the cabin, an outlet for accessories, or a small fan, you will need a standard 120V circuit run to the sauna location. If the cabin is entirely lit by natural light or battery lanterns and you run no powered accessories, you may not need any electrical supply to the sauna itself at all.

The significant trade-off is that wood-fired saunas have their own installation and safety requirements around the wood stove, chimney, clearances, and ventilation — none of which are electrical, but all of which require a permit and potentially a separate inspection in most Canadian provinces and US states. The Canadian Electrical Code, enforced provincially (in Ontario, for example, by the Electrical Safety Authority (ESA)), still governs any electrical wiring added to the structure.

Heater kW to amperage: sizing your sauna circuit

The formula for sauna circuit sizing is straightforward: divide the heater’s wattage by the supply voltage to get the running amps, then multiply by 1.25 to satisfy the continuous-load rule. The results determine both the breaker size and the wire gauge. The rule of thumb for heater selection is roughly 1 kW of heater output per 1.4 m³ (50 cubic feet) of sauna volume; add 20–25% for poorly insulated rooms or outdoor installations. Use the table below as a planning guide, then confirm every number with your electrician and the heater’s nameplate.

Stat: A properly sized 240V / 6–9 kW system can bring a 7–10 m³ (250–375 cu ft) sauna from room temperature to 82°C (180°F) in approximately 25–40 minutes, compared to 45–60 minutes for a comparable-volume 120V installation that cannot reach those temperatures at all (source: industry-standard heater sizing guidelines).

Sauna wiring gauge and conductor rules

Sauna wiring follows the same North American gauge standards as any high-load residential circuit, with two important additional constraints: copper only, and high-temperature rating near the hot zone. Many sauna heater manufacturers explicitly state in their installation manuals that aluminum wiring voids the warranty and is unsafe — this is partly because aluminum has higher resistance, is prone to loosening at connections under thermal cycling, and creates a fire risk at the terminations. If your home has older aluminum wiring, your electrician must address this before adding a sauna circuit.

Temperature-rated wiring inside the sauna envelope

The ambient temperature inside a traditional sauna can exceed 90–100°C (194–212°F) near the ceiling, which exceeds the rating of standard residential cable. Any wiring that must pass through or terminate inside the hot zone — for example, the final connection to a heater inside the room — must use high-temperature-rated conductors and junction boxes. Standard NM-B (Romex) cable is typically acceptable for the main run through interior walls, but the section that enters the hot sauna envelope must transition to appropriately rated components. Your electrician selects the correct cable and conduit type; this is not a guess.

Wire routing and protection

Cables running through unfinished basements, crawlspaces, or outdoor sections require conduit or cable rated for that environment. For outdoor runs, weatherproof conduit protects against moisture and UV degradation. For longer runs above roughly 10 metres (30 feet), your electrician may specify one wire gauge heavier than the minimum to compensate for voltage drop — a 30A circuit on a long run might call for 8 AWG instead of the standard 10 AWG. Voltage drop in a long, undersized run does not simply trip the breaker; it causes the heater to underperform and run hotter than designed, shortening its life.

GFCI protection for home saunas: required, recommended, or prohibited?

Ground Fault Circuit Interrupter (GFCI) protection for sauna wiring sits in a nuanced middle ground — required by many codes in specific locations, recommended almost everywhere as a safety layer, but explicitly prohibited by some heater manufacturers. Understanding the three-way tension between local code, manufacturer requirements, and safety best practice is essential before your electrician specifies the breaker.

When GFCI is required by code

The NEC requires GFCI protection for receptacles in bathrooms, garages, crawlspaces, unfinished basements, outdoor locations, and similar “damp or wet” areas. Where a sauna is installed in a basement or adjacent to a bathroom — common residential placements — GFCI protection on the circuit is typically required. The NEC (as adopted in your jurisdiction) and your local inspector will determine the exact requirement. In Canada, the CEC has parallel requirements for wet-location installations enforced by provincial electrical safety authorities.

When GFCI may be prohibited by the manufacturer

Some traditional electric sauna heaters — particularly high-mass stone heaters with large resistive elements — produce a small but measurable leakage current during normal operation that can trip a standard GFCI breaker at threshold. Manufacturers of those heaters explicitly prohibit standard GFCI breakers in their installation manuals. Ignoring that prohibition may result in a warranty void and repeated nuisance tripping that makes the sauna unusable. Where a heater prohibits standard GFCI but the installation location requires ground-fault protection, your electrician may specify a GFCI disconnect of a different trip threshold — this is a code conversation, not a workaround.

This creates a genuine conflict: some sauna heater manufacturers advise against GFCI protection due to nuisance tripping, while local code may require it for the installation location. That conflict must be resolved by a licensed electrician in consultation with the local authority having jurisdiction (AHJ) — DIYers should not simply omit the GFCI and assume the manufacturer’s prohibition settles the matter.

The rule is simple: the manufacturer’s installation manual always takes precedence over generic guidance. Read it before purchasing, share it with your electrician, and let the licensed professional navigate the code intersection.

Hardwire vs plug-in: which sauna wiring connection type does your sauna need?

The connection method — cord-and-plug versus hard-wired to a junction box — is determined by the heater, not by the homeowner’s preference. Both methods require a licensed electrician to install the dedicated circuit; the difference is what happens at the sauna end of that wire.

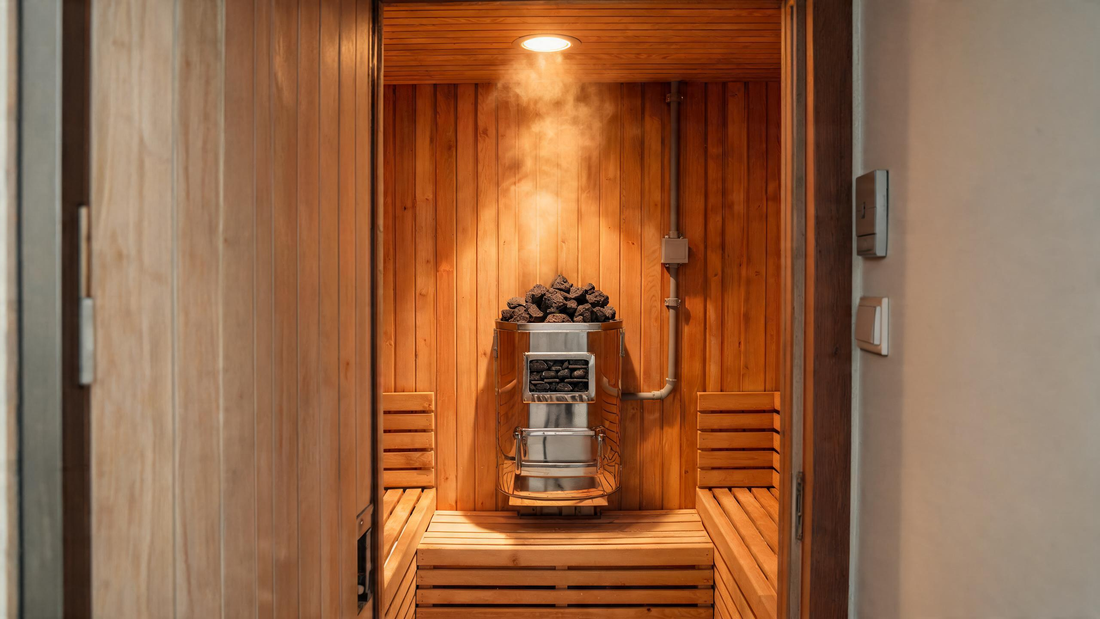

Hard-wired traditional sauna heaters terminate at a junction box positioned outside the sauna’s hottest zone — typically above or beside the door at a point where ambient temperatures are cooler. A manufacturer-approved “whip” (short section of high-temperature cable) then connects from that box to the heater inside. This protects the main circuit wiring from excessive heat. The junction box must remain accessible; do not bury it behind panelling. An external contactor box, required by some heater brands, must also be mounted at a specific height (commonly 30–60 cm / 12–24 inches above the floor) per the manufacturer’s diagrams.

Electrical code, permits, and who does the sauna wiring

Every new dedicated circuit for a home sauna — regardless of voltage, whether 120V or 240V, plug-in or hard-wired — requires a permit and must be installed by a licensed electrician. This is not a formality; it is the legal requirement in every Canadian province and US state, and the practical protection that ensures the work is inspected and safe.

United States: NEC (NFPA 70)

Sauna wiring in the US is governed by the National Electrical Code (NEC), published by the National Fire Protection Association (NFPA) as NFPA 70. The NEC is adopted by individual states and municipalities, often with local amendments. Sauna heaters are addressed in NEC Article 424 (fixed electric space-heating equipment) and Article 680 (swimming pools, spas, and similar) where applicable. The edition in force in your jurisdiction is the binding standard; your electrician knows which edition applies. The authoritative source for the NEC is the NFPA (nfpa.org).

Canada: Canadian Electrical Code (CEC) and provincial authorities

Sauna electrical work in Canada is governed by the Canadian Electrical Code (CEC), Part I (CSA C22.1), adopted provincially with local amendments. Enforcement is by provincial electrical safety authorities — in Ontario, the Electrical Safety Authority (ESA); in British Columbia, Technical Safety BC; in Alberta, Safety Codes Council. In most provinces, a homeowner cannot legally perform electrical work on their own home for a sauna circuit — a licensed master electrician must pull the permit and complete the installation. Even where homeowner permits exist in some provinces, a sauna’s continuous high-load characteristics make professional installation strongly advisable.

6 steps to a safe, code-compliant sauna electrical installation

A sauna electrical installation follows a predictable six-step sequence — and the homeowner’s role in most of those steps is to plan, provide specifications, and stay out of the panel. Know what each step involves so you can have an informed conversation with your electrician.

1. Choose the heater and confirm the spec sheet. Before the electrician even visits, obtain the heater’s full electrical specification: voltage, rated kilowatts, full-load amps, connection type, GFCI requirements or prohibitions, and minimum breaker size. Calore lists this information on each heater product page in the sauna heaters collection. Share the installation manual with your electrician at the initial consultation.
2. Assess the panel and available capacity. Your electrician calculates your existing service load and confirms whether your current panel — 100A, 150A, or 200A service — has the capacity and the open breaker slots to add the sauna circuit. If not, a subpanel or service upgrade is required before proceeding. Do not skip this step; an overloaded panel is a fire hazard.
3. Apply for the permit. Your electrician (or, in some jurisdictions, you) applies for the electrical permit before any work begins. The permit authority reviews the proposed circuit, and an inspector will visit before the walls are closed and again after the installation is complete. Budget for permit fees in your installation cost estimate.
4. Run and terminate the wiring. With the permit in hand, the electrician runs the circuit wire from the panel through walls, floors, or conduit to the sauna location. Interior runs commonly use NM-B cable; basement and outdoor runs use conduit-protected THHN/THWN conductors. High-temperature cable or conduit is used for any section that passes through the sauna’s hot zone.
5. Install the heater, controls, and disconnect. The heater is mounted and connected to the junction box or receptacle per the manufacturer’s wiring diagram. The control panel (usually mounted outside the sauna door) is wired. A local disconnect switch, if required, is installed within sight of the sauna. All components are rated for the temperature and moisture environment.
6. Inspection, testing, and first heat-up. The inspector reviews the completed circuit, verifies breaker sizing, grounding, and GFCI installation where required, and signs off. After sign-off, run a supervised first heat-up: watch for any tripped breakers, unusual electrical smells beyond normal manufacturing burn-off, or hot spots on connections. A burn-in at full operating temperature for 45–60 minutes with the door slightly open clears manufacturing residues from the heater and stones before your first real session.
