Cold Plunge Insulation Materials for Winter: The Complete Guide
Cold plunge insulation for winter combines high R-values, moisture resistance, and tight-fitting lids to control heat loss in freezing conditions. Without proper insulation, even freezing outdoor air cannot maintain cold water temperatures efficiently. In typical winter conditions with 32°F air, wind, and snow, an uninsulated 100-150 gallon cold plunge can gain 10-15°F in a single day. That same tub insulated to R-10 to R-15 may only gain 4-6°F over the same period—reducing ice usage and chiller runtime by more than 50%. This comprehensive guide explains which insulation materials work in real winter conditions, how to calculate R-values for your setup, and how to design a reliable cold plunge that maintains consistent temperatures through the coldest months.
Key Takeaways: Cold Plunge Winter Insulation
- Rigid foam insulation and insulated lids perform best for winter cold plunges
- Target R-10 to R-15 total insulation for efficient cold retention in freezing conditions
- Metal tubs require foam wrapping to prevent massive heat gain from thermal conductivity
- Up to 40% of heat loss occurs at the water surface without a proper insulated lid
- DIY foam builds can match premium plunge performance at significantly lower cost
Why Insulation Matters So Much for Winter Cold Plunges
Maintaining an ice bath through January or February presents significant challenges without proper insulation. Heat moves from warmer to colder areas, and water's high thermal mass readily absorbs environmental warmth.
The Temperature Rise Problem
In typical winter conditions with 32°F air, an uninsulated 100-150 gallon plunge can gain 10-15°F in a single day. That same tub insulated to R-10 to R-15 may only gain 4-6°F. This means less ice, fewer chiller cycles, more consistent temperatures, and reduced maintenance.
Energy Calculation: Each degree added to 100 gallons requires ~830 BTU. An uninsulated tub gaining 12°F overnight needs nearly 10,000 BTU removed. Proper insulation gaining only 4°F needs roughly 3,300 BTU—a 67% reduction.
Understanding R-Values and Heat Loss in Cold Plunges
R-value measures how well a material resists heat transfer—higher is better. A well-insulated cold tub has a U-factor of 0.3-0.5, versus 2.0+ for uninsulated setups.
R-Value Comparison of Common Materials
| Material | R-Value Per Inch | Winter Suitability |
|---|---|---|
| Bare metal stock tank | R-0.1 to R-0.3 | Poor—requires extensive insulation |
| Rotomolded plastic tub | R-0.5 | Fair—minimal inherent insulation |
| 1" XPS foam board | R-5 | Good—excellent for DIY builds |
| 1" Polyiso foam board | R-6 | Good—highest R-value per inch |
| Closed-cell spray foam | R-6 to R-7 | Good—best for gaps and irregular spaces |
| Insulated cooler (1.5-2" thick) | R-10 to R-15 | Excellent—built-in performance |
Real-World Temperature Rise Comparison
Here is what to expect for daily temperature rise in a 100-gallon plunge starting at 45°F and sitting in a 40°F garage with no chiller:
| Setup | Approximate Daily Temp Rise |
|---|---|
| Uninsulated stock tank | 12-14°F |
| Inflatable tub | 10-12°F |
| 1" foam-wrapped tank | 6-8°F |
| 2" foam-wrapped tank with insulated lid | 4-6°F |
| High-end insulated cooler | 3-5°F |
Critical Factor: Surface losses through an open or poorly covered top often equal or exceed wall losses, especially outdoors. Up to 40% of total heat loss can happen right off the water surface. That is why insulated covers and lids are critical in winter—sometimes more important than wall insulation.
Comparing Common Cold Plunge Insulation Approaches
When evaluating cold plunge setups for winter, you are choosing between four broad categories: uninsulated tubs, inflatable options, foam-wrapped stock tanks, and cooler-based builds. Each has its place, but winter performance varies dramatically.
Uninsulated Metal and Plastic Tubs
Bare metal or plastic containers are heat sponges. Metal conducts heat at 16-50 W/m·K, actively pulling warmth into your water. In a 35°F garage, these tubs gain 12-15°F per day—requiring 40-60 lbs of ice daily or running a 1/2 HP chiller 6-8 hours.
Inflatable Tubs and Ice Pods
Inflatable tubs offer affordability but deliver only R-1 to R-2 insulation. Expect 10-12°F daily gains in cool rooms. They work in semi-heated garages with insulated lids but struggle in exposed outdoor conditions.
Foam-Wrapped Stock Tanks
DIY builds shine here. A 100-gallon tank wrapped in 2" rigid foam achieves R-10 to R-12. A 1/4 HP chiller runs just 1-2 hours daily in a 40°F garage versus 4-8 hours for uninsulated tanks.
Rotomolded Cooler Builds
High-end coolers with 1.5-2" polyurethane foam are essentially thermoses at R-10 to R-15. They gain only ~6.5°F daily versus 12.5°F for inflatables—a gap widening substantially in near-freezing conditions.
Best Insulation Materials for DIY Cold Plunges in Winter
Rigid foam boards around R-6 per inch are the core DIY winter solution—widely available, affordable, and easy to work with. Cut 1-2 layers to fit vertical walls, tape seams with foil tape, then protect with waterproof tarp or cedar slats. EPS works but can absorb water if not sealed.
Performance Comparison: 2 inches of polyiso (~R-12) around vertical walls plus an R-10 lid can reduce wall and top heat loss by more than 60% versus bare metal (R-0.1 to R-0.3) or plastic (R-0.5) alone. In a 35°F garage, a 100-gallon plunge at 45°F with 2-inch foam wrap may only need one large 10-15 lb ice block per day, or a 1/4 HP chiller cycling just a couple hours.
Practical Installation Tips
- Use utility knife with fresh blade for clean cuts
- Leave access panels for drain valves
- Seal bottom edges with waterproof tape
- Cap foam edges with aluminum tape
Polyiso degrades in direct sunlight—use cladding for outdoor installations.
Spray Foam and Expanding Foams
Canned expanding foam delivers R-6 to R-7 per inch—excellent for filling gaps around plumbing, sealing spaces between frames and tub walls, and insulating lid cavities. However, it can deform thin plastic tubs if over-applied and is nearly impossible to remove once cured.
Use spray foam as a gap filler combined with rigid boards, not as sole insulation. Open-cell foam drops 15-20% in R-value when damp.
Wood Slats, Cedar Skirts, and Framing
Wood offers only R-1 per inch—not enough for insulation alone. But it serves as critical protective cladding over foam. The most popular DIY builds wrap stock tanks in foam, then enclose in cedar slat frames.
This approach keeps wind, UV, and rodents off insulation, adds a "spa" aesthetic, allows integration of steps and benches, and protects foam from damage. Cedar resists moisture and rot, making it ideal for outdoor installations. Treat wood as a protective shell over primary foam insulation.
Reflective Covers and Thermal Blankets
Silver UV-reflective covers offer modest R-values but reduce evaporative and convective losses from the water surface—representing 30-40% of total heat loss, especially with wind.
Layer your protection: rigid foam lid (R-5 to R-10) as primary barrier, silver reflective weather cover blocking wind and snow, and optional floating pool blanket under the hard lid.
Insulated Coolers vs Stock Tanks and Inflatable Tubs
The fundamental difference between high-end rotomolded coolers and cheaper alternatives comes down to built-in thermal performance. Insulated coolers have 1.5-2 inches of polyurethane foam in the walls and lid with R-10 to R-15 effective insulation, gasketed lids, and fewer thermal bridges.
Cost-Benefit Comparison
| Setup | Upfront Cost | Winter Chiller Runtime | Ice Alternative |
|---|---|---|---|
| Stock Tank + 2" Foam + DIY Lid | $250-500 | 2-3 hours/day (1/4 HP) | 15-25 lbs/day |
| Inflatable + Oversized Chiller | $600-1400 | 5-8 hours/day (1/2 HP) | 40-60 lbs/day |
| Rotomolded Cooler + 1/4 HP Chiller | $1400-3200 | 1-2 hours/day (1/4 HP) | 10-15 lbs/day |
While insulated coolers cost more upfront and offer smaller interior volume, they are usually the most energy-efficient long-term winter option. For people plunging daily at 38-45°F, the operational savings can offset the higher purchase price within 1-2 years.
How to Design a Winter-Ready DIY Insulated Cold Plunge
Build a setup that maintains consistent water temperature throughout winter with minimal daily effort, using materials that survive freeze-thaw cycles season after season.
Step 1: Pick the Right Container for Winter
| Container Type | Pros | Cons | Winter Verdict |
|---|---|---|---|
| Metal Stock Tanks | Durable, widely available, affordable ($80-200) | Highest thermal conductivity | Viable with 2+ inches foam |
| Plastic Stock Tanks | Affordable ($100-180), lighter than metal | Can crack in extreme cold if empty | Excellent DIY base |
| Inflatable Units | Low cost ($100-300), portable | Minimal insulation, puncture risk | Indoor/heated garage only |
| Rotomolded Coolers | Built-in R-10 to R-15, durable | Expensive ($1000-2500) | Best thermal performance |
Step 2: Add Insulation Where It Matters Most
Heat escapes from three surfaces: water surface (lid), sidewalls, and bottom.
The Lid (Top Priority)

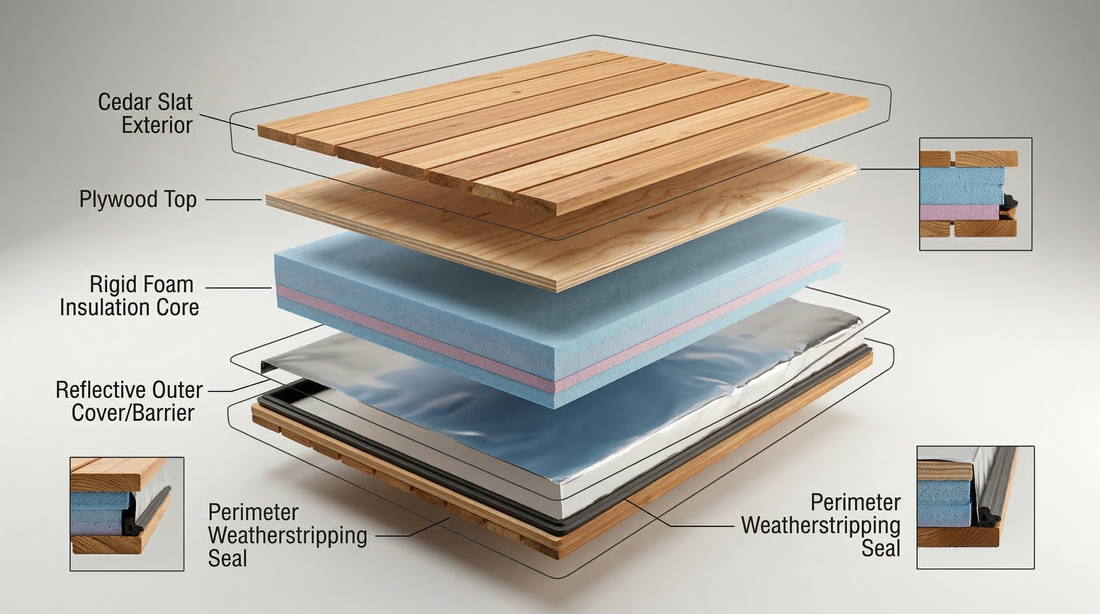

The water surface loses heat through evaporation and convection. Target R-10 to R-15 with multi-layer construction: 3/4" plywood top + 1.5" polyiso underneath, edges sealed with weatherstripping, heavy enough to resist wind.
Side Walls (Second Priority)
Aim for R-10 to R-12: 2" polyiso or XPS around vertical surfaces, all seams taped with foil tape, top edges capped.
Bottom/Ground Contact (Third Priority)
Add 1-2" rigid foam or rubber mats under tub for R-5 to R-10 base insulation.
Step 3: Seal, Protect, and Weatherproof
Exposed foam degrades in winter conditions. Use cedar/composite slats, PVC panels, or pressure-treated plywood as cladding to protect from wind, snow, and UV.
Realistic Winter Performance: Ice vs Chillers vs Hybrid
The right insulation level determines equipment needs. For a 100-gallon plunge in 35°F environment:
| Setup | Ice Needed/Day | Chiller Runtime |
|---|---|---|
| Uninsulated | 40-60 lbs | 6-8 hours |
| R-10 insulated | 10-20 lbs | 1-2 hours |
That difference means $20-40/month savings during cold months. Hybrid approaches combining insulation with modest chillers work best for consistency.
Maintenance and Longevity of Insulation in Cold Climates
Winter wear, freeze-thaw cycles, and trapped moisture can degrade insulation.
Seasonal Inspection Checklist
Each fall and spring, examine foam for waterlogging, verify wooden skirts, inspect reflective covers, check tape seals, and test lid fit.
Addressing Moisture Problems
Wet foam loses R-value. Replace or reseal waterlogged EPS. Closed-cell foams (XPS and polyiso) resist moisture better.
Winterization Actions
- Drain external chillers when hard freezes expected
- Keep water circulation running
- Insulate hoses with foam sleeves
Expert Verdict: Cold Plunge Winter Insulation
Cold plunge insulation succeeds based on material selection and installation quality. Rigid foam boards and insulated lids reduce heat gain, cutting ice use and chiller runtime by more than half. Well-insulated DIY builds rival premium units at fraction of cost.
Key finding: Prioritize the lid (40% of heat loss), then walls, then ground. Target R-10 to R-15 total R-value. With proper insulation, DIY stock tank builds match performance of units costing 10x more.
For professionally engineered systems with optimized insulation, Calore Health and Wellness offers solutions for year-round performance in any climate.
Frequently Asked Questions About Cold Plunge Insulation
What R-value should I aim for if I keep my cold plunge in an unheated garage in winter?
Aim for at least R-10 on walls and R-10 to R-15 on the lid. This reduces temperature rise, ice use, and chiller runtime while remaining cost-effective.
Is it worth insulating the bottom of the tub if it sits on concrete?
Yes. Cold concrete pulls heat from water. Adding R-5 to R-10 beneath reduces heat loss and prevents freezing around drains. Even rubber stall mats help.
Can I use fiberglass batt insulation around my cold plunge?
No. Moisture compromises fiberglass performance and causes mold. Closed-cell rigid foam is more reliable in cold, damp environments.
How do I keep my plumbing from freezing in deep winter?
Keep plumbing close to insulated tub, insulate pipes with foam sleeves, and avoid standing water in external lines. Periodic circulation prevents freezing. Consider heat tape for extreme climates.
Are professional cold plunges always better insulated than DIY builds?
No. Many DIY builds using thick rigid foam achieve similar or better insulation than commercial units. A properly executed foam-wrapped stock tank can match units costing $2,000+.
What is the best foam type for cold plunge insulation?
Polyiso offers highest R-value at R-6 per inch. XPS at R-5 per inch is excellent and widely available. EPS works but can absorb moisture. Avoid open-cell foams.
How do I calculate how much insulation I need?
For every 10°F difference between water and air, aim for R-10 insulation. In a 35°F garage maintaining 45°F water, use R-10 minimum on walls and R-10-15 on lid.
Can I use an insulated cover instead of building a hard lid?
Soft covers help but rigid foam lids work best. Use layered approach: foam lid (R-5 to R-10) plus reflective weather cover. Soft covers alone only provide R-2 to R-4.
