Cold Plunge · Install & Safety
How to Design a Safe Cold Plunge Deck (Canadian Guide)
A safe cold plunge deck starts with one number: a filled plunge concentrates roughly 600–650 kg (1,300–1,450 lb) over about 1.3 m² (~14 sq ft), which works out to nearly 4.7 kPa (~99 psf) — about 2.5× the 1.9 kPa (~40 psf) live load the National Building Code of Canada specifies for a typical residential deck. So a standard or older deck cannot carry one without verification. The safe answer is almost always a concrete slab on grade or a ground-level deck reinforced under the plunge — joists sistered, beams doubled, posts on footings below your frost line — with a Professional Engineer (P.Eng) confirming your exact structure.
Key Takeaways
- Water is the load. Water weighs 1 kg per litre, so a ~415 L plunge is ~415 kg (915 lb) of water alone — add the tub, a bather, and ice/chiller and you reach ~630 kg (1,390 lb).
- The footprint spikes the pressure. That ~630 kg over a small ~1.3 m² footprint is ~4.7 kPa (~99 psf) — roughly 2.5× the NBC residential deck live load of 1.9 kPa (~40 psf).
- Ground beats elevated. A concrete slab on grade is the simplest safe base; a reinforced ground-level deck is fine if engineered; a standard second-storey deck, cantilever, or balcony is a hard no without a P.Eng.
- Frost and snow are extra. Footings must sit below your local frost depth (~1.2–1.8 m in cold zones), and plunge water acts like permanent dead load on top of regional ground snow load.
- Connections fail first. Roughly 90% of deck collapses trace to ledger or connection failure — carry a plunge over a beam and posts, never off the ledger.
- Match the plunge to the build. Pick a tub whose weight and footprint you can actually carry — start with options in the Calore cold plunges collection and plan the deck around it.
What to plan before you build a cold plunge deck
Before any framing, pin down three numbers: the filled weight of your specific tub, its footprint, and where on your property the plunge will live. A cold plunge deck is a structural problem first and a wellness project second — the order you solve it in is load, then location, then materials. Pick the tub before you pour anything, because its filled mass and footprint set every framing decision downstream.
Get the manufacturer's filled-weight and dimensions, decide between a slab and a deck based on your home and grade, and confirm your municipality's frost depth and ground snow load before you draw a plan. Lighter, smaller-footprint units are far easier to support — compare filled weights across the Premium Cold Plunge and the larger Elite™ Luxury Cold Plunge before you size any framing. If the plunge is going on anything elevated, plan to involve a Professional Engineer from the start rather than as an afterthought. Doing the math up front is what separates a deck that lasts from a deck that fails.
How to calculate the total load of a filled cold plunge
Add four things: water, the dry tub, the bather(s), and accessories like a chiller or ice. The dominant term is almost always the water, and the rule that makes it simple is that water weighs 1 kg per litre (for parity, that is about 8.34 lb per US gallon). A mid-size plunge holding around 415 L of water therefore carries about 415 kg of water before anything else gets in.
Worked through for a typical mid-size unit, the total lands near 630 kg (1,390 lb). Run the same table with your own tub's filled volume and weight — a bigger or deeper plunge climbs fast, because every extra 100 L is another 100 kg of permanent load.
| Component | Example | Mass |
|---|---|---|
| Water (1 kg/L) | ~415 L (≈110 US gal) | 415 kg (915 lb) |
| Tub (dry) | Mid-size | 90 kg (200 lb) |
| Bather | One adult | 90 kg (200 lb) |
| Chiller / ice / accessories | — | 35 kg (75 lb) |
| Total | — | ≈ 630 kg (1,390 lb) |
Stat: Water is the load. At 1 kg/L, the ~415 L in a mid-size plunge is ~415 kg (915 lb) on its own — about two-thirds of the total. Choosing a smaller-volume tub is the single biggest lever you have over the weight your deck must carry.
Load per area: why a small footprint is the real problem
The danger isn't only the total weight — it's how little floor that weight sits on. Pressure is load divided by footprint, so 630 kg ÷ ~1.3 m² works out to roughly 4,750 N/m², or about 4.7 kPa (~99 psf). A hot tub spreads similar weight over a much larger base; a compact cold plunge concentrates it, which is exactly why a deck that happily holds patio furniture can be overwhelmed by a single small tub.
That concentrated ~4.7 kPa is the number to compare against code, not the raw kilograms. As the next section shows, it sits about two and a half times above what a standard residential deck is designed to carry, which is why "it feels solid" is never a substitute for the math.
Canadian code limits: what a deck is actually rated for
In Canada, a residential deck or balcony serving a single dwelling is designed to a specified live load of just 1.9 kPa (about 40 psf) under the National Building Code of Canada (NBC) Part 9, drawing on the load values in Part 4 (Table 4.1.5.3). That figure is meant for people, furniture and snow being walked on — not a filled tub parked permanently in one spot. A plunge at ~4.7 kPa is roughly 2.5× that allowance over its footprint.
Older decks are often the bigger worry: many were built to that same 1.9 kPa, sometimes with undersized framing or aged fasteners, and they have no spare capacity for a concentrated load. Exterior balconies can be required to meet the live load of the floor area they serve, which is why the safe move is always to design the zone under a plunge for far more than the minimum.
| Surface | NBC specified live load |
|---|---|
| Residential deck / balcony (single dwelling) | 1.9 kPa (~40 psf) |
| Exterior balcony serving an assembly / exit area | up to 4.8 kPa (~100 psf) |
| Recommended design zone under a filled cold plunge | plan for ~4.8–6.0 kPa (100–125 psf) locally |
Confirm against the current NBC Table 4.1.5.3 and your provincial code (e.g. Ontario's OBC, B.C.'s BCBC) before designing.
Frost depth and snow load by Canadian region
Two Canadian climate factors decide your footings and your framing: how deep the frost goes, and how much snow piles on. Footings must bear below the frost line so the ground doesn't heave them in spring — that depth runs roughly 1.2 m across much of southern Ontario, Quebec and the Prairies and 1.5–1.8 m or more in colder northern zones, while coastal B.C. is shallower. Pull the exact frost-depth requirement from your municipality; it is a code value, not a guess.
Snow is a load you add on top of the plunge. Ground snow load (Ss, with a rain component Sr) comes from the NBC Appendix C climatic data for your specific location and runs from roughly 1.5–2.5+ kPa across populated zones, far higher in mountain and northern areas. Crucially, the plunge water is permanent and behaves like dead load, so your structure must carry plunge weight plus snow — not one or the other.
Stat: Frost depth drives footing depth — about 1.2 m in much of southern Canada and up to 1.5–1.8 m+ in colder regions. Ground snow load (Ss) per the NBC climatic data adds roughly 1.5–2.5+ kPa on top of the permanent water mass. Always pull both numbers for your municipality before sizing footings.
Where a cold plunge can safely go: slab vs deck vs balcony
Location matters as much as load, and the choices fall into a clear safety hierarchy. The safest and simplest base is a concrete slab on grade, which sends the weight straight into the ground; a reinforced ground-level deck is the next-best option; and an undersized second-storey deck, cantilever, or balcony is a do-not-use without a P.Eng-stamped design. Choose the highest tier you can.
| Option | Verdict | Why |
|---|---|---|
| Concrete slab on grade | Safest / simplest | Load goes straight to the ground; no deck-collapse risk; handles splash and freeze-thaw. Design for your soil; set on a frost-protected base. |
| Reinforced ground-level deck | Safe if engineered | Tighter joist spacing, doubled beams, and posts on frost-depth footings under the plunge. Looks right against a raised home. |
| Second-storey deck | P.Eng required | Concentrated load far above the 1.9 kPa design; ledger and connections become life-safety. Never without a stamped design. |
| Cantilever / balcony / rooftop | Do not use | Loads transfer back into the structure unpredictably; requires stamped calculations and almost always a redesign. |
Safety first — deck collapse is a life-safety risk. A filled cold plunge is one of the heaviest point loads you can put on a deck, and a deck failure under it can cause serious injury. Connection failure — most often the ledger, the board fastening the deck to the house — is blamed for roughly 90% of deck collapses, usually from fasteners pulling out or a rotted, unflashed rim joist. Never hang a plunge's weight off the ledger; carry it over a beam and posts that run to footings. On any elevated or modified deck, have a Professional Engineer (P.Eng) verify the structure and a building permit in place before you fill it.
How to reinforce the framing under a cold plunge deck
Reinforcing a cold plunge deck means routing that point load down to the ground through stronger framing, not spreading it across the surface. The core moves are sistering (doubling) the joists under the plunge, tightening joist spacing in that zone, adding solid blocking and bridging between joists, doubling the beam, and landing posts on concrete piers or footings carried below the frost line. Concentrate the help directly under the tub.
Two rules govern where the load lands. First, place the plunge over a beam or directly over posts, never out at mid-span where joists flex most. Second, the ledger connection must be through-bolted and properly flashed — lag screws or nails into a rim joist are the classic failure point, and flashing keeps water from rotting the connection over years of splash. Tighter spacing, bigger members, and footings below frost: that is the whole job.

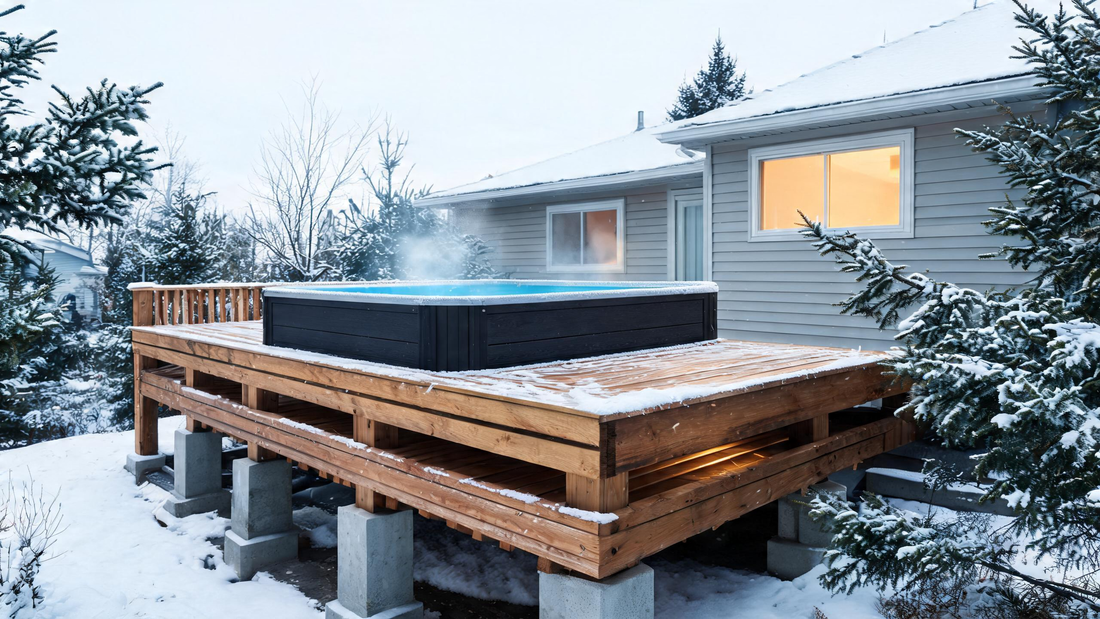

The reinforced "equipment zone"
Think of the area under the plunge as a dedicated reinforced bay rather than ordinary deck. In that bay, run joists closer together than the rest of the deck, block solidly between them, and make sure at least one doubled beam and a pair of posts sit directly beneath the tub so the water mass drops almost straight onto footings. The rest of the deck can be framed normally; the bay carries the plunge.
When you need a P.Eng and a permit
In Canada, structural sign-off comes from a Professional Engineer (P.Eng) — a licensed, stamping engineer regulated by your provincial association — not a generic "structural engineer." Bring one in for any second-storey, cantilevered, rooftop, or balcony install, for any existing deck you're unsure about, and any time the plunge load exceeds the 1.9 kPa the deck was designed for. For a fresh, properly reinforced ground-level deck or a slab, a P.Eng review is still cheap insurance on a load this concentrated.
Permits are separate and provincial. A building permit is generally required to build a new deck or to structurally modify an existing one, with the rules varying by province (Ontario's OBC, B.C.'s BCBC, Quebec, Alberta, and so on) and decks above a threshold height or area essentially always requiring one. The simplest rule of thumb: anything elevated or loaded beyond 1.9 kPa means a P.Eng plus a permit, full stop.
Electrical, drainage and freeze protection
The structure is only half the build — the wet, powered, freezing environment around it is the other half. A cold plunge needs code-compliant outdoor power, water that drains away from the structure, and protection against Canadian freeze-thaw on both the framing and the plumbing.
Electrical to the Canadian Electrical Code
Outdoor power for a plunge must meet the Canadian Electrical Code (CSA C22.1). That means GFCI / Class A protection on outdoor receptacles, weatherproof in-use covers, and a dedicated circuit sized to the chiller's nameplate rating. This is licensed-electrician and permit territory, not a DIY extension cord — the combination of water and electricity makes correct circuit protection a genuine safety item.
Drainage and freeze protection
Plan controlled filling and emptying with a submersible drain pump, and slope the surrounding grade so water runs away from the house and footings, never pooling where it can heave a pier. For Canadian winters, keep the unit running so a chiller or heater stops the water and lines from freezing, protect exposed plumbing, and if you ever shut down, drain fully so nothing is left to freeze and crack the shell. Freeze-thaw is as hard on framing and fasteners as it is on water lines, so corrosion-resistant hardware and good flashing pay off here too.
9 steps to design a safe cold plunge deck
Here is the whole process in order, from picking the tub to the final inspection. Follow it top to bottom; each step depends on the one before it.
- Pick the plunge first. Get the manufacturer's filled weight, dry weight and footprint dimensions. Everything downstream is sized to these numbers, so a smaller-volume tub makes the whole build easier.
- Run the load math. Add water (1 kg/L) + tub + bather + accessories for total mass, then divide by the footprint to get kPa. Compare that figure — not the kilograms — against code.
- Choose location by the safety hierarchy. Prefer a slab on grade, then a reinforced ground-level deck. Rule out cantilevers, balconies and undersized second-storey decks unless a P.Eng signs off.
- Pull your local code values. Get your municipality's frost depth and the NBC ground snow load (Ss/Sr) for your location before drawing anything.
- Design the footings below frost. Size piers and footings to your soil and carry them below the frost line (~1.2–1.8 m+), placed directly under the plunge.
- Reinforce the bay. Sister joists, tighten spacing, add blocking, double the beam, and land posts over footings under the tub. Through-bolt and flash the ledger.
- Get a P.Eng review and permit. Have a Professional Engineer verify the design and pull the required building permit before construction on anything elevated or over-loaded.
- Wire and plumb to code. Use a licensed electrician for GFCI/Class A outdoor power on a dedicated circuit, and plan controlled fill/empty with drainage sloped away from footings.
- Inspect annually. Check the ledger, fasteners, footings and framing each year for rot, corrosion and movement — freeze-thaw and constant splash are relentless.
Expert Verdict
Designing a safe cold plunge deck is an exercise in respecting one concentrated number. A filled plunge puts roughly 4.7 kPa (~99 psf) over its small footprint — about 2.5× the 1.9 kPa a residential deck is designed for — so the build has to route that load straight to the ground. A slab on grade solves it most simply; a reinforced ground-level deck with doubled framing and footings below frost solves it well; an elevated deck, cantilever or balcony solves it only with a P.Eng. Pull your municipal frost and snow values, wire to the Canadian Electrical Code, and never hang a plunge off the ledger.
Key finding: A standard or older residential deck cannot safely hold a filled cold plunge — at ~4.7 kPa it carries about 2.5× the NBC's 1.9 kPa design load over a tiny footprint. The safe build is a concrete slab on grade or a ground-level deck reinforced under the plunge, with footings below your local frost line and a Professional Engineer verifying anything elevated before you ever fill it.
Frequently Asked Questions
Can you put a cold plunge on a deck?
Sometimes, but never assume it. A filled cold plunge concentrates roughly 600 to 650 kg (1,300 to 1,450 lb) over about 1.3 m2, which works out near 4.7 kPa (about 99 psf) — roughly 2.5 times the 1.9 kPa (about 40 psf) live load that the National Building Code of Canada specifies for a typical residential deck. A ground-level deck built and reinforced to carry that point load can hold a plunge; a standard, older, or elevated deck cannot without verification. The only safe answer is to run the load math for your exact tub, then have a Professional Engineer (P.Eng) confirm your specific structure before you fill it.
Can you put a plunge pool on a deck?
A larger plunge pool is heavier than a cold plunge tub and almost always needs a slab on grade or an engineered structure rather than a standard deck. The same load math applies, just with a bigger number: every litre of water is 1 kg, so a pool holding 1,000 to 2,000 L adds 1,000 to 2,000 kg of permanent dead load before you add the shell and bathers. That load almost never fits within a residential deck's 1.9 kPa allowance, so plan for a reinforced ground-level pad designed by a P.Eng, with footings carried below your local frost depth.
What accounts for about 90% of deck collapses?
Connection failure — specifically the ledger, the board that fastens the deck to the house — is blamed for the large majority of deck collapses, commonly cited at around 90%. The failure mode is almost always nails or undersized fasteners pulling out, or water rotting the rim joist behind an unflashed ledger, rather than the joists themselves snapping. That is why a cold plunge should be carried over a beam and posts that run down to footings, never hung off the ledger, and why a properly through-bolted and flashed ledger is non-negotiable. On any elevated deck, this connection is the single most important thing for a P.Eng to inspect.
What is the 3-4-5 rule for decks?
The 3-4-5 rule is a quick way to square a deck frame using the Pythagorean theorem: measure 3 units along one side and 4 units along the adjacent side, and when the diagonal between those two points equals exactly 5 units, the corner is a true 90 degrees. Builders usually work in 900 mm, 1,200 mm and 1,500 mm (or 3, 4 and 5 feet) and scale up for accuracy. It is a layout and squaring check, not a strength check — it makes sure your frame is square, but it tells you nothing about whether the structure can carry a filled cold plunge. That part still comes down to the load math and proper framing.
How much does it cost to reinforce a deck for a cold plunge?
It varies widely by region, access and how much work is needed, so treat any figure as a planning estimate rather than a quote. Light reinforcement of an accessible ground-level deck — sistering joists, adding blocking, and pouring one or two frost-depth piers under the plunge zone — is the most affordable route, while a full structural redesign, an engineered slab, or anything on a second-storey or cantilevered deck costs substantially more once a P.Eng stamp and permits are added. Always get the load math and a stamped design first; reinforcing the wrong way, or guessing, is far more expensive than doing it once. A simple concrete slab on grade is often the cheapest safe option of all.
Is a concrete patio always better than a wood deck for a cold plunge?
For carrying the load, yes — a properly built concrete slab on grade is the simplest and safest base for a cold plunge because it transfers weight directly into the ground and removes the deck-collapse risk entirely. It also shrugs off constant splash and freeze-thaw far better than framing. A slab still has to be designed for your soil and poured on a base that resists frost heave, and a well-reinforced ground-level deck with footings below the frost line can also be perfectly safe and looks better against a raised home. The deck is not automatically unsafe; it just has to be engineered for the point load, whereas a slab starts with that problem mostly solved.
Can I leave a cold plunge on an outdoor deck through a Canadian winter?
Yes, with planning — many Canadians run a plunge outdoors year-round, but the structure, the water and the plumbing all need winter-proofing. Remember that the water mass is permanent and acts like dead load, sitting on the frame on top of any snow load, so your framing and footings must be sized for plunge weight plus regional ground snow load, not just one or the other. Keep the unit running so a chiller or heater prevents the water and lines from freezing, protect exposed plumbing, and slope and drain the area so meltwater moves away from footings rather than pooling and heaving them. If you ever fully drain and shut down for winter, make sure no water is left to freeze and crack the shell or lines.
