Cold Plunge · Equipment
Cold Plunge Chiller Guide: Built-In Chillers, Sizing & Energy
A cold plunge chiller is the small refrigeration unit that decides whether your tub stays a daily ritual or a cold puddle you stop using. It is what makes a tub a true self-chilling cold plunge, holding water at a set point rather than relying on bags of ice. For most homes a 1/2 to 3/4 HP chiller holds a 100 to 150 gallon tub near 40°F, drawing roughly 0.5 to 2 kWh/day while cycling and running around 50 to 60 dB. Get the horsepower, insulation and placement right and the water is ready every morning with no effort at all.
Key Takeaways
- The cold plunge chiller, not the shell, is what makes a tub usable every day, it removes the daily ice run entirely.
- Size by water volume and target temperature: roughly 1/4–1/3 HP for small 60–90 gallon tubs, 1/2–3/4 HP for typical 100–150 gallon plunges, and 1 HP for large or commercial use.
- Insulation is half the equation, a tight lid and insulated shell can cut energy use by 30–50%.
- Holding temperature costs little: most units draw 0.5–2 kWh/day once the water is cold because the compressor cycles on and off.
- Built-in chillers win on simplicity and daily use; external chillers win on serviceability and very large tanks.
- Explore self-chilling options in our cold plunges collection to match a chiller to your space and routine.
What a cold plunge chiller actually does
Strip a cold plunge down to its working parts and the headline component is the cold plunge chiller. The shell holds the water; the chiller decides its temperature. It is a compact refrigeration system, the same physics as your fridge or a heat pump, that pulls heat out of the water and dumps it into the room. A pump pushes water across a heat exchanger, refrigerant carries the heat to a compressor and condenser coil, and a fan exhausts it away. The result is water held precisely where you set it, day after day, with no melting ice to chase.
That last point is the whole reason chillers exist. An ice-only plunge demands a fresh haul of ice every session, drifts warmer the moment you climb in, and quietly trains you to skip days. A self-chilling cold plunge removes that friction. You set a number, the water sits there, and the ritual survives contact with a busy week. In our experience fitting cold therapy into Canadian homes, the chiller is the single feature that decides whether a tub gets used in February.
Modern units bundle more than cooling. A good cold plunge tub with chiller integrates circulation, filtration and sanitation into the same loop, so the same pump that holds temperature also keeps the water clean. That integration is why a cold plunge with built-in chiller feels like one appliance rather than a science project, and it is the reason the category has moved from DIY chest freezers to finished products.
Built-in vs external cold plunge chiller

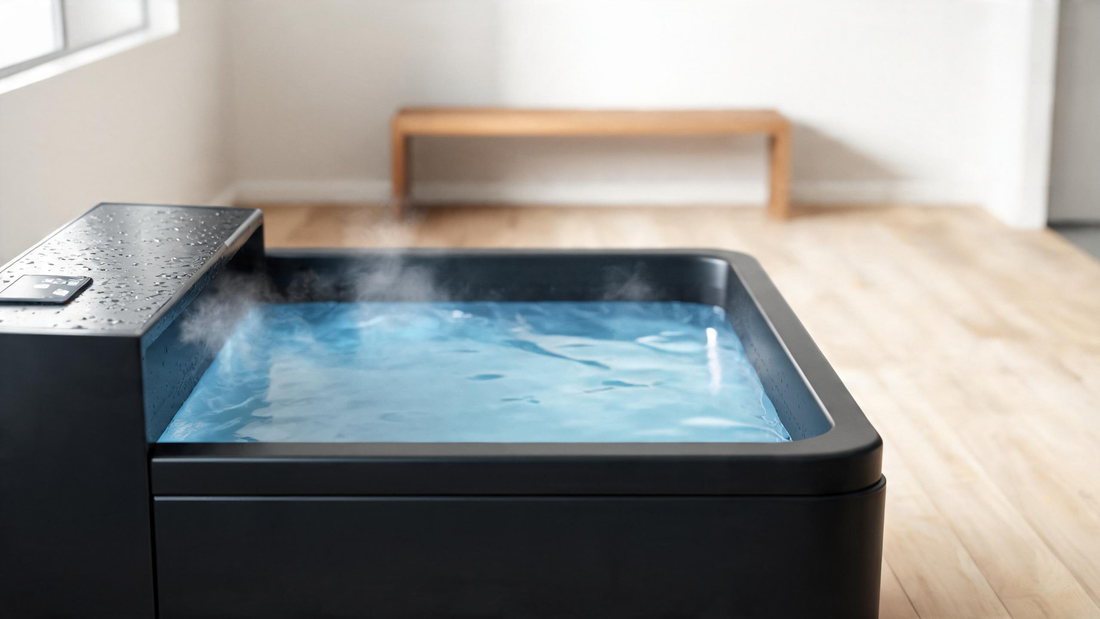

The first real fork in the road is whether the chiller lives inside the tub or sits beside it. A cold plunge with built-in chiller is one finished appliance: fill it, set a temperature and step in. An external chiller is a separate box plumbed to the tub with hoses. Both cool water the same way; the difference is friction, footprint and serviceability.
Built-in units are the lower-friction choice and the one most people actually use daily. Everything is engineered together, the plumbing is hidden, and there is one device to power and maintain. External chillers trade that tidiness for flexibility: you can service or upgrade the chiller without touching the tub, and a single large external unit can feed an oversized tank or, in a commercial room, more than one plunge. The cost is extra plumbing, a second footprint, and more joints where a leak can start.
| Factor | Built-in chiller | External chiller |
|---|---|---|
| Setup | Plug in, fill, set temperature | Plumb hoses, prime pump, then set |
| Footprint | One unit, hidden plumbing | Tub plus a separate chiller box |
| Daily friction | Lowest, one appliance | Higher, two connected systems |
| Serviceability | Service the whole unit | Swap or upgrade chiller alone |
| Leak points | Fewer, sealed loop | More, every hose fitting |
| Best for | Home daily use, clean rooms | DIY builds, very large or commercial tanks |
Rule of thumb: Heat pumps and refrigeration systems move heat rather than create it, which is why a chiller can remove several units of heat for each unit of electricity it consumes, per the U.S. Department of Energy on heat-pump efficiency. The same principle is why holding water cold costs far less than the first pull-down implies.
For nearly every home buyer, the integrated route wins. Calore's Elite™ Luxury Cold Plunge and the Premium Cold Plunge are both built-in designs, so the chiller, circulation and filtration are tuned to the exact shell they sit in, no hose math required.
Cold plunge chiller sizing: HP by water volume
Sizing a cold plunge chiller comes down to three questions: how much water, how cold, and how warm is the room. Horsepower (HP) is the shorthand for cooling capacity, but it is only meaningful alongside the temperature gap you are asking the unit to close and the heat leaking in from its surroundings. A unit that cruises in a cool basement can struggle in a 30°C garage with the same water.
Two numbers translate HP into something you can feel. Cooling capacity is often given in BTU per hour: a 1/2 HP residential chiller lands roughly in the 3,000 to 4,500 BTU/hr range, enough to pull a typical tub down in an evening and hold it easily. Coefficient of performance (COP) describes efficiency, how many units of heat removed per unit of electricity in. A higher COP means the same cooling for less power, which directly lowers your running cost.
| Water volume | Target temp | Cool room (≤20°C) | Warm room (25–30°C) |
|---|---|---|---|
| 60–90 gal (small) | ~45–50°F | 1/4 HP | 1/3 HP |
| 100–150 gal (typical) | ~40°F | 1/2 HP | 3/4 HP |
| 100–150 gal (typical) | ~37°F | 3/4 HP | 1 HP |
| 150–250 gal (large/commercial) | ~37–40°F | 1 HP | 1.5 HP+ |
Read the table as a starting point, not a law. Insulation can shift you a full step in either direction. A tightly insulated shell with a sealed lid behaves like a cooler with the lid on, the chiller only has to recover the trickle of heat that sneaks in, so a 1/2 HP unit can hold a tub a poorly insulated rival would need 3/4 HP to manage. The reverse is also true: skimp on insulation and you effectively downgrade your chiller.
Estimating pull-down time
Pull-down is the time to cool from tap temperature to your set point on the first fill. A rough estimate: water weighs about 8.34 pounds per gallon, and removing 1 BTU lowers 1 pound of water by 1°F. So cooling 130 gallons (about 1,084 lb) from 65°F to 40°F means removing roughly 27,000 BTU. A 4,000 BTU/hr chiller would need close to 7 hours in theory, longer in practice because heat keeps leaking in and the compressor cycles. Day to day this rarely matters, because the unit holds your set point and only recovers small losses.
Rule of thumb: A 130 gallon tub cooled 25°F requires roughly 27,000 BTU of heat removal on the first pull-down, after which a correctly sized chiller spends most of its time idle, cycling to hold the set point rather than running flat out.
The specs that separate a keeper from a regret
Two tubs can quote the same horsepower and behave completely differently. These are the spec lines worth reading on any cold plunge tub with chiller before you buy.
- Temperature floor. The coldest the unit can reach and hold, not just touch briefly. Most quality residential chillers reach the high 30s Fahrenheit; the class floor sits near freezing. If you want to train at 37°F in a warm room, you need headroom above the floor, not a unit that just barely gets there.
- Cooling capacity in BTU/hr. The honest version of horsepower. BTU/hr tells you how fast heat actually leaves the water and how easily the unit holds temperature on a hot day.
- Refrigerant type. Modern units commonly use R290 (propane), a low-global-warming refrigerant that is efficient and increasingly standard, or older R134a. The refrigerant affects efficiency and environmental footprint.
- Heat-exchanger material. A titanium coil resists corrosion from sanitizers far better than cheaper metals, which matters because the chiller is in constant contact with treated water.
- Insulation. Shell insulation plus an insulated, sealing lid. This is the cheapest performance upgrade there is, it lowers both your energy bill and the horsepower you need.
- Filtration and sanitation. A 20-micron sediment filter handles particles; ozone or UV handles biology. Integrated water care is what keeps a self-chilling tub clear between drains.
- Noise rating in decibels. A real number in the specs, not "whisper quiet". Aim for a rated figure around 50–60 dB and rubber-isolated compressors.
- Electrical draw and circuit. Most residential units run on a standard 110–120V outlet at roughly 10–12 amps and should be on a dedicated GFCI-protected circuit.
Keeping that loop clean is its own small discipline. Stock filters, test strips and water-care supplies live in our sauna and cold plunge accessories, the filtration and maintenance pieces that keep a chiller running efficiently season after season.
How much does a cold plunge chiller cost to run?
A common worry is that a self-chilling cold plunge will spin the meter. It does not, once you understand the duty cycle. The chiller works hard only on the first pull-down and on the hottest days; the rest of the time it cycles, running for a few minutes, then resting while the insulated shell holds the cold.
In typical use, most residential chillers draw 0.5 to 2 kWh per day to hold temperature, an efficiency that follows the heat-pump principle the U.S. Department of Energy documents. The first pull-down from tap water uses more, often 3 to 6 kWh spread over several hours. At a Canadian average near 0.15 dollars per kWh, daily holding cost lands around 0.10 to 0.30 dollars, less than running a desk fan all day. These ranges line up with the broader efficiency framing for refrigeration and heat-pump appliances published by ENERGY STAR.
To put a real number on it: our Elite™ Luxury Cold Plunge pairs a 3/4 HP chiller with a deeply insulated shell, and in Calore's testing it holds 39°F drawing roughly 0.8 kWh per day in a 21°C room once the water is at temperature, about 0.12 dollars a day at the Canadian average rate.
| Phase | Energy use | What is happening |
|---|---|---|
| Initial pull-down | ~3–6 kWh (one-time) | Compressor runs continuously to reach set point |
| Daily holding (well insulated) | ~0.5–1 kWh/day | Short cycles recover small heat gains |
| Daily holding (poorly insulated) | ~1.5–2.5 kWh/day | Longer cycles fight constant heat leak |
| Hot day or warm room | +30–60% | Compressor works harder against higher ambient heat |
The biggest lever you control is insulation. A well-insulated tub with a tight lid can cut holding energy by 30 to 50 percent versus an uninsulated one, simply because the chiller spends far less time fighting the room. Efficiency in the unit itself follows the same heat-pump logic the U.S. Department of Energy describes: a chiller moves existing heat instead of generating temperature change from scratch, so a higher-COP unit delivers the same cold for less power. When you pair an efficient chiller with a sealed, insulated shell, the running cost effectively disappears into the noise of a normal hydro bill. For owners who run the full contrast ritual, a Calore Cedar sauna for the heat and a Glacier-cold plunge for the recovery, that low holding cost is what makes alternating hot and cold a daily habit rather than an occasional splurge.
How loud is a cold plunge chiller, and can it stay outside?
Because a chiller is refrigeration, it makes refrigeration noise. Expect roughly 50 to 60 decibels while the compressor is active, similar to a quiet dishwasher or a fridge from a metre away, and near silence between cycles. Sound climbs during pull-down and on warm days. Rubber-isolated compressors and a published dB rating are the signs of a unit engineered for a living space rather than a garage.
Placement decides both noise and efficiency. The chiller exhausts heat, so it needs clear air around the vents, typically a hand's width or more on the intake and exhaust sides. Cram it into a tight cabinet against a hard wall and it recirculates its own hot air, working harder, running louder and costing more. Give it room and it cycles less.
Then there is the Canadian winter. The misconception is that cold weather helps a cold plunge; in reality it threatens the equipment. A chiller is built to remove heat, not to keep its own plumbing from freezing. In sub-zero conditions the water lines, pump and filter can freeze and crack if the unit loses power or is undersized. If you keep a plunge outdoors through winter, keep it powered and circulating, shelter it from wind, and follow the manufacturer's cold-weather guidance. Many owners simply move the tub into a garage or basement for the coldest months, which also reduces ambient heat load the rest of the year, a quieter, cheaper, longer-lived setup.
Safety: electrical and cold exposure
A cold plunge combines water, electricity and a genuine physiological stressor, so two kinds of safety apply: the wiring and the human in the water.
Electrical safety. A cold plunge chiller must be plugged into a GFCI-protected circuit (ground-fault circuit interrupter), which cuts power in milliseconds if current strays where it should not, the standard safeguard for any appliance near water. Use a dedicated circuit rated for the unit's amperage, avoid extension cords and power strips, and test the GFCI periodically. If you are unsure about your outlet or panel, have a licensed electrician confirm it before first use.
Cold-exposure safety. Cold-water immersion is a real cardiovascular stressor. The initial cold-shock response speeds heart rate and breathing, and very cold water carries risk for people with heart conditions, high blood pressure, or who are pregnant. Start with shorter, warmer sessions, never plunge alone if you are new to it, and avoid alcohol beforehand. Consult a qualified healthcare professional before starting cold-water immersion, especially if you have any underlying medical condition.
On the benefits, stay honest. A British Journal of Sports Medicine meta-analysis of cold-water immersion for recovery found the evidence is real but modest and context-dependent, helpful for some recovery and perceived-soreness outcomes, not a cure-all. Treat cold plunging as a tool with measured benefits and clear contraindications, not a miracle, and the ritual stays both safe and sustainable.
How to choose a self-chilling cold plunge
Pull the threads together and the decision is straightforward. Start with how cold you genuinely want to train and how much water that requires, then size the chiller one step up if your room runs warm or your insulation is average. Favour a built-in unit unless you have a specific reason, oversized tank, DIY build, commercial room, to go external. Read the BTU/hr, refrigerant, heat-exchanger material, insulation, filtration and a real dB number before you trust a horsepower figure.
For a finished, daily-driver setup, an integrated tub does the engineering for you. The Elite™ Luxury Cold Plunge pairs a capable chiller with a deeply insulated shell for owners who want the coldest, quietest hold, while the Premium Cold Plunge delivers the same self-chilling convenience for a typical home footprint. Both are built so the only thing you have to remember is to get in.
Expert Verdict
After fitting cold therapy into Canadian homes through every season, our position is plain: the chiller is the product. A beautiful shell with an undersized or noisy chiller becomes an expensive ornament; an honest chiller in a well-insulated tub becomes a habit. Size for your water volume and target temperature with a step of headroom, demand real specs over marketing horsepower, treat insulation as a performance feature, and respect the electrical and cold-exposure safety rules. Do that and a self-chilling cold plunge costs pennies a day to run and is ready the moment you are.
Key finding: Match chiller HP to water volume and target temperature, then let insulation do half the work, that pairing, not raw horsepower, is what turns a cold plunge tub with chiller into a daily ritual you actually keep.
Frequently Asked Questions
What size chiller do I need for my cold plunge?
Match the chiller to your water volume and how cold you want to go. As a working rule, a 1/4 to 1/3 HP unit handles a small 60 to 90 gallon tub held in the high 40s, a 1/2 to 3/4 HP unit suits a typical 100 to 150 gallon plunge held near 40 degrees Fahrenheit, and a 1 HP unit is for large or commercial tubs or anyone chasing 37 degrees Fahrenheit in a warm room. Insulation matters as much as horsepower: a poorly insulated tub in a 30 degree Celsius garage can force a 1/2 HP unit to run like a 1/4 HP one. When in doubt, size up one step.
How much electricity does a cold plunge chiller use?
Most residential self-chilling cold plunges draw roughly 0.5 to 2 kWh per day once the water is at temperature, because the compressor cycles on and off rather than running constantly. The initial pull-down from tap temperature uses more, often 3 to 6 kWh spread over several hours. At an average Canadian rate near 0.15 dollars per kWh, daily holding cost lands around 0.10 to 0.30 dollars. A well-insulated tub with a tight lid can cut energy use by 30 to 50 percent versus an uninsulated one, because the chiller spends far less time fighting heat gain from the room.
What is the difference between a built-in and an external cold plunge chiller?
A built-in chiller is integrated into the tub housing as one finished appliance, so you fill it, set a temperature and use it, with filtration and sanitation usually bundled in. An external chiller is a separate box that connects to the tub by hoses, which makes it easy to service or upgrade but adds plumbing, a second footprint and more places for leaks. For most home users a cold plunge with built-in chiller is the lower-friction choice and the one people actually use daily. External setups make more sense for DIY builds, oversized tanks or commercial rooms where a single large chiller may feed more than one tub.
How long does a cold plunge chiller take to cool the water?
From a tap-water start of about 18 degrees Celsius, a properly sized residential chiller pulls a 100 to 150 gallon tub down to plunge temperature in roughly 4 to 12 hours. The exact time depends on horsepower, the temperature gap you are closing, room temperature and insulation. Day to day this rarely matters, because the unit holds your set point continuously and only has to recover the small amount of heat that leaks in. Most owners simply leave the chiller running and the plunge is ready whenever they are.
Can a cold plunge with a built-in chiller stay outside in winter?
It can, but freezing weather is the real risk, not the cold water. Refrigeration chillers are designed to remove heat, not to keep their own plumbing from freezing, so in sub-zero Canadian winters the water lines, pump and filter can freeze and crack if the unit is off or underpowered. If you keep a plunge outdoors through winter, keep it powered and circulating, shelter it from wind, and follow the manufacturer's cold-weather instructions. Many owners move the tub into a garage or basement for the coldest months, which also lightens the chiller's load year-round.
Are built-in cold plunge chillers noisy?
A typical residential chiller runs at roughly 50 to 60 decibels while the compressor is active, comparable to a quiet dishwasher or a refrigerator a metre away. Because the unit cycles, it is silent for long stretches between runs. Noise climbs during the initial pull-down and on hot days when the compressor works harder. If quiet matters, look for rubber-isolated compressors and a sound rating in the specs, and avoid placing the chiller's exhaust against a hard wall in a small echoey room.
